Cooling Fan Motor Coil Inserting Machine Quick Tooling Change Winding Inserting

Cooling Fan Motor Coil Inserting Machine Quick Tooling Change Winding Inserting

  • High Light

    Cooling Fan Coil Inserting Machine

    ,

    Quick Tooling Stator Winding Machine

    ,

    Quick Tooling Coil Inserting Machine

  • Name
    Cooling Fan Motor Coil Inserting Machine Quick Tooling Change Winding Inserting
  • Model
    SMT-QX16
  • Stator OD
    Φ160mm
  • Stator ID
    Φ20~Φ100mm
  • Tooling Travel
    70mm
  • Color
    Customized
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / BV / SGS
  • Model Number
    QX16
  • Minimum Order Quantity
    1 Set
  • Price
    Price unit: USD; Price depends on configuration, design and customer special request, which can be negotiated later.
  • Packaging Details
    Plastic wrapping film, vacuum package and plywood cases. The package size depends on actual machine size.
  • Delivery Time
    70 workdays after advance payment
  • Supply Ability
    10~20 sets per 3 months

Cooling Fan Motor Coil Inserting Machine Quick Tooling Change Winding Inserting

Cooling Fan Motor Coil Inserting Machine Quick Tooling Change Winding Inserting

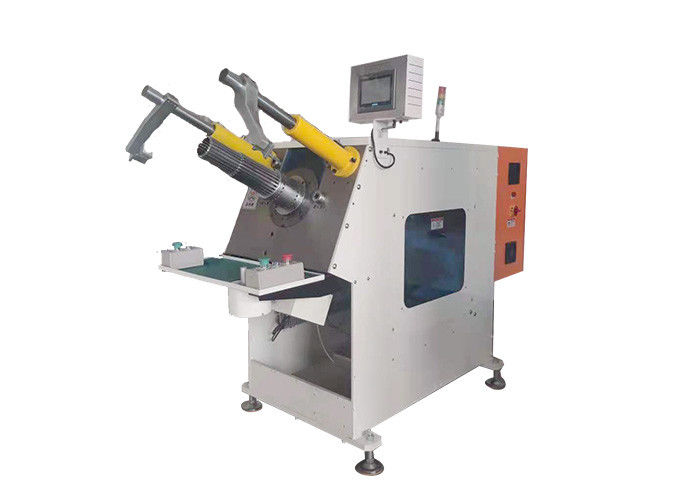

Coil Inserting Machine SMT-QX16 is characterized by quick tooling, with upgraded simpler structure.



(1) Technical Parameters of Coil Inserting Machine



Cooling Fan Motor Coil Inserting Machine Quick Tooling Change Winding Inserting

Model

SMT-QX16

Stator I.D

Φ20~Φ100mm

Stator O.D

≤Φ160mm

Stack height

≤120mm

Tooling travel

≤70mm

Compatible wire

Cu / AL

Slot number range

24~48 slot

Power supply

380V/50/60Hz 6.5Kw

Weight

≈1150Kg

Dimension

(L)2380×(W)1280×(H)1700mm



(2) Main Features of Coil Inserting Machine



A. Wedge and coil are all automatically inserted into stator;

B. Adopting servo motor to push coil; with function of coil pre-pushing;

C. Cutting paper into wedge depot is driven by servo motor; speed is adjustable;

D. Adopting servo motor to feeding paper slot by slot, interval slot or skip slot; wedge paper length is adjustable;

E. Tooling and wedge cutter part are designed to be modular, can be changed together one time;

F. PLC controller can detect fault position, with the function of fault diagnosis;

G. Equipped with pre-feeding paper device and meet the consistency of paper length;

H. The speed of pushing coil is adjustable according to different wire size;

I. Operator works in standing posture;

J. Pressing the button to start the machine by both hands;

K. Changeover time: ≤10mins;



(3) Main Allocation of Coil Inserting Machine (standard)



PLC Controller: INOVANCE (China);

Servo motor system: INOVANCE (China);

Sensor element: OMRON(Japan), AUTONICS(Korea);

Other electric elements: SCHNEIDER(France), IDEC(Japan), Delixi (China);

Ball screw: HIWIN(Taiwan)

Bearing: NSK(Japan), SKF(Sweden);

Pneumatic element: AirTAC(Taiwan);

Air source pressure: 0.5~1MPa;

Power: 3 Kw;(as per actual configuration)

Power Source: 3-phase 380V/50Hz;

Weight: ≈1000Kg;

Dimension for Ref. (mm): (L)1800×(W)1000×(H)1600;



(4) Services



We focus on developing and producing machines for different induction motors production, such as Winding machine, Coil Inserting Machine, etc.

Design and manufacturing are standard except customer has special request. For example, shape design, allocation and colour,etc. can be specilized. Besides, we can help to arrange the layout of machines in customer site when necessary.

Our engineers will provide customers with professional technical support. Within one year warranty period, some support and parts need to be replaced will be for free.

Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.

We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.



(5) Production Line Proposal



With good service, professional team and reliable quality, SMT provide customer with different kinds of equipments for various motors production. It can be one set machine or the whole prodcution line from winding process to final forming process. So especially for customer who wants the whole production line, we can provide manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.



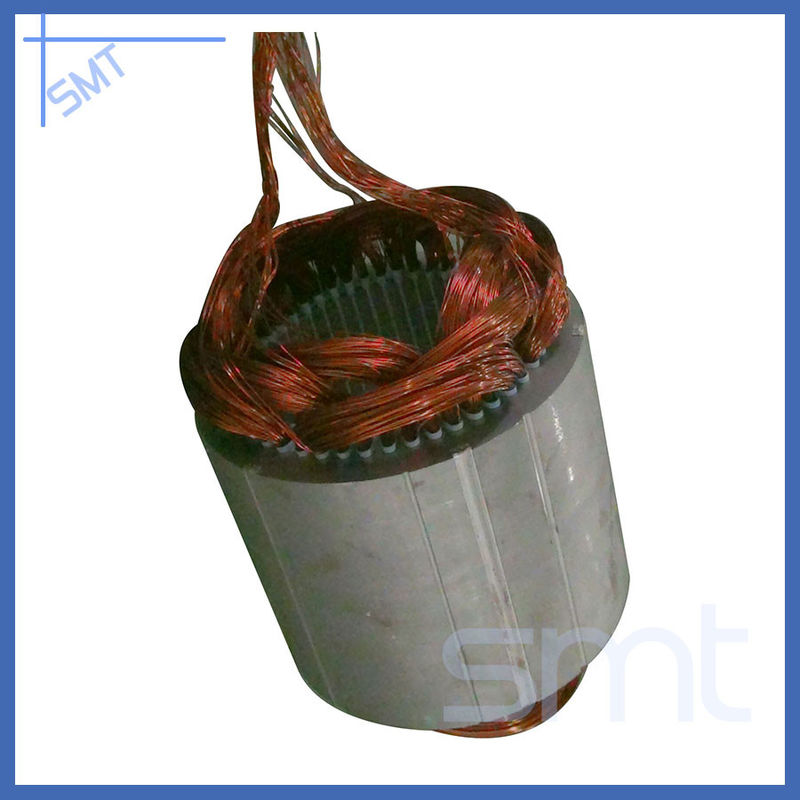

(6) Details Show

Cooling Fan Motor Coil Inserting Machine Quick Tooling Change Winding Inserting 0
