Intermediate Coil Forming Machine Automatic Motor Stator ISO / SGS Audit

Intermediate Coil Forming Machine Automatic Motor Stator ISO / SGS Audit

  • High Light

    Pre - Forming Machine

    ,

    Stator Coil Winding Machine

  • Name

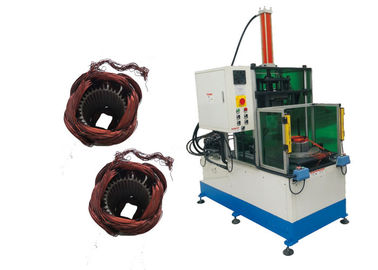

    Automatic Motor Stator Coil Intermediate Forming Machine
  • Model
    ZJ190
  • Stator I.D.
    50-131mm
  • Stator O.D.
    ≤191mm
  • Coils Shaping
    Stator Forming
  • Color
    White/Blue
  • Vertical Shaping
    Stator Shaping
  • Displacement Of Cylinder
    20L
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / SGS Audit
  • Model Number
    SMT - ZJ190
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood Box with sealing.
  • Delivery Time
    42 - 88 days
  • Payment Terms
    T/T , L/C
  • Supply Ability
    1pcs / 39 - 87 days

Intermediate Coil Forming Machine Automatic Motor Stator ISO / SGS Audit

Intermediate Coil Forming Machine Automatic Motor Stator ISO / SGS Audit





Machine operation steps
1. After connected to the power source and air source, switch the button to on. Press hydraulic start button; switch to auto mode.
3. Press "reset" button. Check if all parts are in the correct position.
4. Put stator into the groove. Press "Start" button by two hands. Machine will auto form.



(1) Main Technical Date



Model ZZ190
Stator I.D. 50-131mm
Stator O.D. ≤191mm
Stack Height 20-160mm
Displacement of cylinder 20F
MOQ 1 Coil Forming Machine
Power Supply 380V/50/60Hz Kw
Weight 1500kgs
Machine dimension (L)1950*(W)1100*(H)2500mm



(2) Application

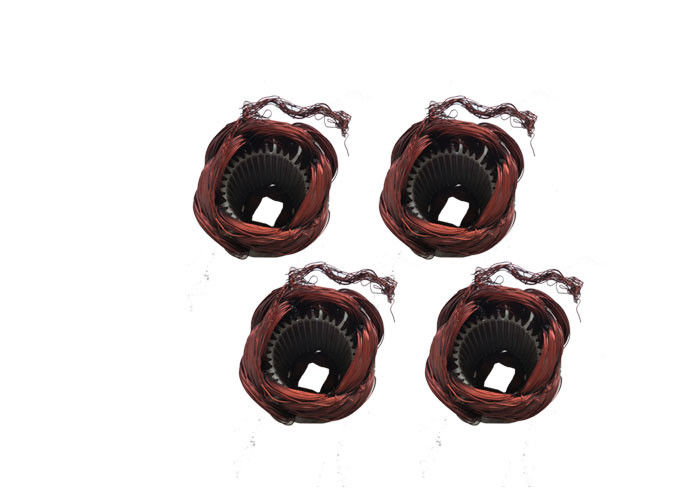

The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.


(3) Machine Main Characteristic



This machine adopts whole hydraulic system and PCL program.

This machine can adjust the forming stack length by changing washer.

Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

Production capacity ≤13s/set (exclude loading/unloading time)

Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

This machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.

Efficiency stator coil forming machine,stator coil forming machine,coil forming machine work,coil forming machine used.



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5) Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
