Stator Winding Inserting Machine / Automatic Stator Winding Machine

Stator Winding Inserting Machine / Automatic Stator Winding Machine

  • High Light

    Coil Insertion Machine

    ,

    Stator Winding Inserting Machine

    ,

    3Kw Automatic Stator Winding Machine

  • Name
    Coil Insertion Machine / Coil Injection Machine / Coil Inserting Machine
  • Height Of Edge Folded
    3-10mm
  • Power Supply
    380V/50/60Hz 3Kw
  • Appropriate Wire
    0.2~1.2mm
  • Our Services
    12 Months Warranty Period
  • Tooling Travel
    Max 70mm
  • Core Length
    Max 110mm
  • Weight
    1831kg
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / SGS Audit
  • Model Number
    SMT-KW300
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood Box With Sealing.
  • Delivery Time
    35-55days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 35-54days

Stator Winding Inserting Machine / Automatic Stator Winding Machine

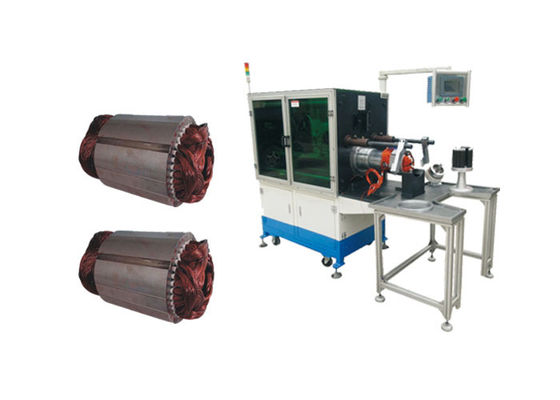

SMT-KW300 Coil Inserting Machine , Automatic Stator Winding Machine





Main Features Of Stotor Coil Winding Inserting Machinery

The tooling is with modular design and the changeover time is less than 10 minutes.
1. With horizontal frame design,controlled by industrial programmable PLC, the machine is used for winding and wedge automatically inserting.
2. It adopts AC servo motor driving system,AC frequency conversion speed regulation system,pneumatic system.
3. It can achieve wedge length setting, feeding, cutting, forming and inserted into stator together with coil automatically.
4. Coil inserting speed can be set at different section.
5. Wedge feeding mode can be set according to different motor.
6. Equipped with human-machine control interface, it has the function of status display,malfunction alarm, various parameters setting etc..
7. It has the characteristic of widely application, high automation,easy operation and convenient tooling change.



(1) Main Technical Features



Model KW300
Stator I.D. 110-210mm
Stator O.D. 175-300mm
Stack Height ≤250mm
Tooling Travel ≤70mm
Appropriate Wire Diameter 0.2-1.2mm
Slot number range 8-48slot
Power Supply 380V/50/60Hz 4Kw
MOQ 1 set Motor Wire Inserting Machine
Machine dimension (L)1000*(W)2000*(H)2000mm



(2) Application



The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.


(3) Our Service



Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5) Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

Stator Winding Inserting Machine / Automatic Stator Winding Machine 0
