    Motor Stator Coil Servo Winding Inserting Machine
  • Stator I.D.
    20-100mm
  • Stator O.D.
    ≤160mm
  • Tooling Travel
    3-10mm
  • Power Supply
    ≤70mm
  • Appropriate Wire
    Copper Wire / Aluminium Wire
  • Machine Dimension
    (L)1800*(W)650*(H)1700mm
  • Customized
    Yes
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / SGS Audit
  • Model Number
    SMT-k90
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood Box With Plastic Bag.
  • Delivery Time
    61 - 82 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 61 - 82 days

Motor Stator Coil Servo Winding Inserting Machine / Inserting Machine SMT - K90

Small Motor Automatic Coil Inserting Machine for Stator / Coil Inserting Machine SMT - K90

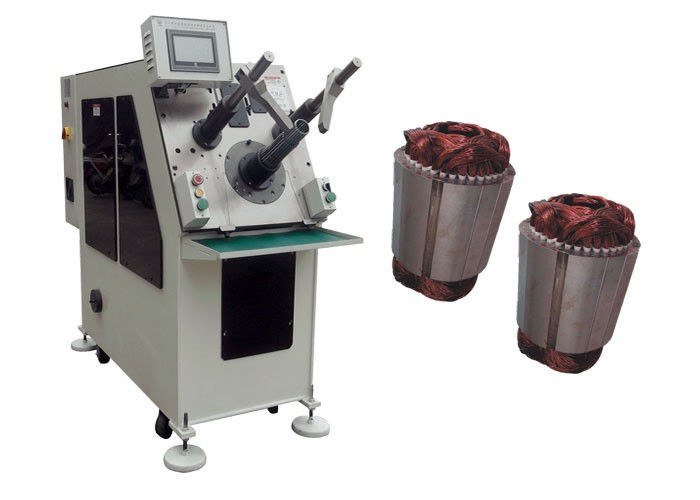

This type of stator coil inserting machine can insert coil and wedge or coil and wedge in the mid of slot into stator at a time; wedge feeding is to be done bt stepping motor,and coil and wedge inserting is by servo system; different parameter could be set in human-machine interface; the speed and feeding mode is acquirable according to different slot filling rate and different kind of wire;Every machine we supply gives the option to program for automatic slot wedge making. Different size stator production can be achieved by changing tooling.



(1) Main Technical Data



Model K90
Stator I.D. 20-100mm
Stator O.D. ≤160mm
Stack Height ≤120mm
Tooling Travel ≤70mm
Appropriate Wire Copper Wire / Aluminium Wire
Slot number range 8-48slot
Power Supply 380V/50/60Hz 3Kw
Weight 850kgs
Machine dimension (L)1800*(W)650*(H)1700mm



(2) Application


The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.

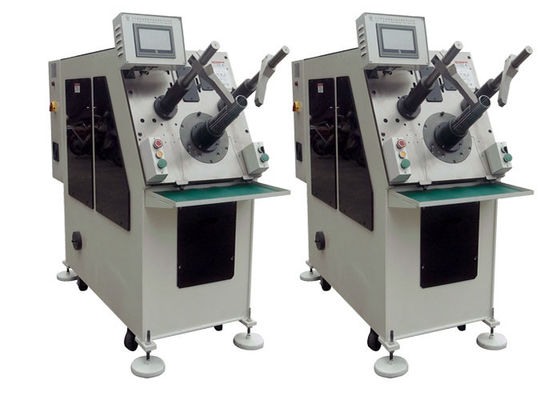

(3) Machine Main Characteristic



The machine insert coil and wedge simultaneously, coil insertion is controlled by servo motor system, and wedge insertion by variable frequency motor.
It is controlled by HMI, and machine can diagnose breakdown automatically.
This machine is suitable for Polyester Film wedge roll material with fixed thickness and fixed width (width and thickness dimension is provided by customer)
The wedge feeding is by stepping motor,feeding length, cutting, forming, inserting slot number could be set.
Both copper wire and aluminium wire are applicable.
Production capacity ≤25s/set (exclude theman-hours for auxiliary work)
Primary qualification rate for copper wire≥98.5%, after rework, the rate ≥99.5%

(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5) Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
