    Detailed Product Description

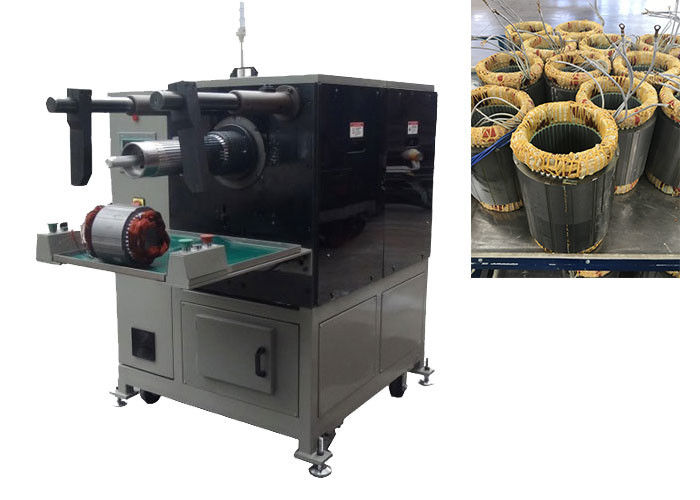

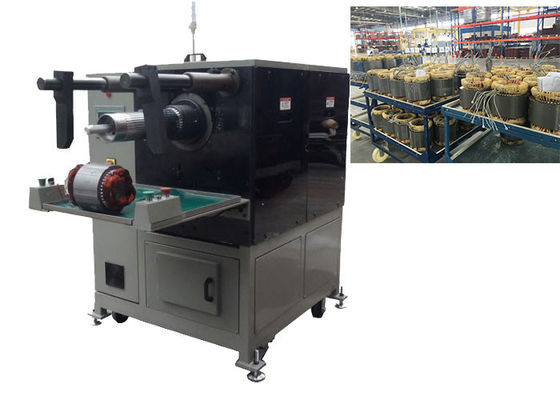

    Name: Induction Motor Stator Production Line Coil Inserting Machinery Model: SMT-QX10
    Stator I.D.: 110-210mm Stator O.D.: ≤260mm
    Dimension: (L)2370×(W)1260×(H)1710mm Weight: 1160kg
    Core Length: ≤250mm Slot Number Range: 24-48 Slots

    Induction Motor Stator Production Line Coil Inserting Machinery / Coil Inserting Machine SMT-QX10



    The coil inserting prcoess is the most important process in the manufacture of a stator for an electric motor. The coil insertion tool is the key part of coil inserting machine. In order to keep the coil inserting smoothly, we design and manufacture various kinds of insertion tools with absolutely high quality, well resistent.
    This machine conducts gang control to inserting main shaft, wedge paper feeding shaft and wedge magazine indexing shaft through PLC control system assembly, cooperating with intelligent human-machine communication system. It conducts enamelled wires insertion, slot wedge cutting and moulding, also the wedges insertion into the stator slots when coil insertion, which completes the single/multi phase coil insertion and slot wedge insertion at one step. The machine has the advantages of even wire push torque, stable moulding of slot wedge, high production efficiency, low cost, easy and reliable use and maintenance.


    (1) Main Technical Features


    Model SMT-QX10
    Stator I.D 110-210mm
    Stator O.D ≤260mm
    Core Length ≤250mm
    Tooling stroke ≤90mm
    Compatible wire CU/AL
    Slot number range 24-48 slots
    Power supply 380V/50/60Hz 6.5Kw
    Weight 1160kg
    Dimension (L)2370×(W)1260×(H)1710mm


    (2) Application


    The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

    (3) Our Service


    Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

    We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.


    (4) OEM/ODM


    Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
    Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
    Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
    Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.


    (5) Production Line Profile


    With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
