Home ProductsElectric Motor Machine

ISO / SGS Electric Motor Machine For Deep Pump Motor Cooler Motor

ISO / SGS Electric Motor Machine For Deep Pump Motor Cooler Motor

    • ISO / SGS Electric Motor Machine For Deep Pump Motor Cooler Motor
    • ISO / SGS Electric Motor Machine For Deep Pump Motor Cooler Motor
  • ISO / SGS Electric Motor Machine For Deep Pump Motor Cooler Motor

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / SGS Audit
    Model Number: SMT-YM08

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Automatic Motor Rotor Die Casting Machine is packed by wood case. Or, we can do it as your order.
    Delivery Time: 37 - 69 days
    Payment Terms: T/T, L/C
    Supply Ability: 1pcs / 37 - 69 days
    Detailed Product Description

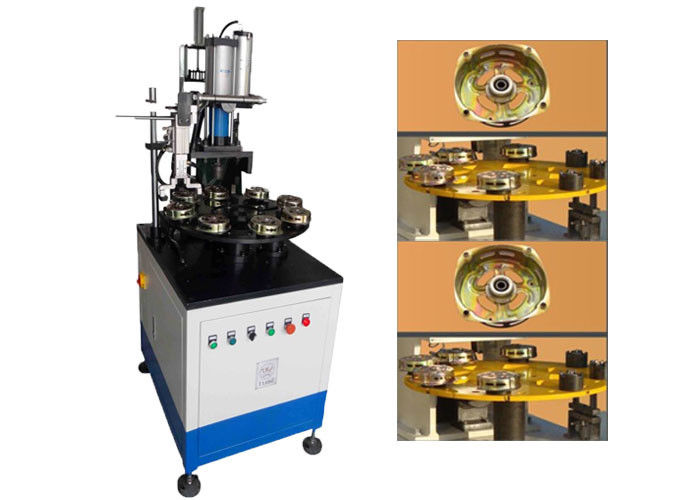

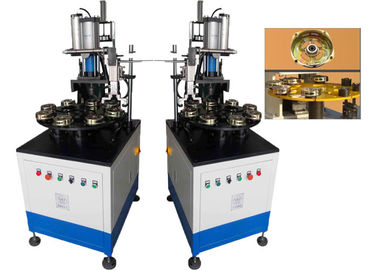

    Name: End Cover Bearing Pressing Machine For Deep Pump Motor Cooler Motor Model: YM08
    Cylinder Pressure: 5T (pressurize) Working Station Number: 8pcs
    Efficiency: 2-5s/p Air Pressure: ≥0.5MPa
    Weight: 400Kg Dimension: (L)721×(W)602×(H)1651mm

    ISO / SGS Electric Motor Machine For Deep Pump Motor Cooler Motor





    End cover bearing riveting machine is specially designed for automatic assembling sintered bush into steel casing end cover; displace the traditional pressing method characterize by high labor intensity and low safety standard; operate with eight-station circulation; automatic feeding, simple operation, high safety standard and stable pressure; reduce the quality problem caused by abnormal bush motion. Operator only needs to load the workpiece manually, reviting and unloading is proceed automatically.
    This machine is controlled by PLC. All the parameter could be set on the touch screen.



    (1) Main Technical Features Of Our Product



    Model YM08
    Cylinder pressure 5T (pressurize)
    Working station number 8
    Working mode Continuously/Circulation
    Efficiency 2-5s/p
    Air pressure ≥0.5MPa
    Power supply 220V/50/60Hz 0.75Kw
    Weight ≈400Kg
    Dimension (L)721×(W)602×(H)1651mm



    (2) Application



    1. Specially designed for automatic assembling sintered bush into steel casing end over;
    2. displace the traditional pressing method characterized by high labor intensity and low safety standard;
    3. operate with eight-station circulation;
    4. automatic feeding, simple operation, high safety standard and stable pressure;
    5.reduce the quality problem caused by abnormal bush motion.


    (3) Machine Main Characteristic


    The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.

    Electric engines of generators, electric engines of washing machine, air conditioning, water pump, compressors, electric engines of fan, also applicable to copper wires, aluminum wires and some special wires, Fan motors, washing machine motor, and all kinds of small motor, square, circular, multi-layer coil winding .



    (4) OEM/ODM



    Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
    Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
    Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
    Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



    (5) Production Line Profile



    With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

    ISO / SGS Electric Motor Machine For Deep Pump Motor Cooler Motor

    (6) About Us



    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
    ISO / SGS Electric Motor Machine For Deep Pump Motor Cooler Motor
