SMT - ZL4080 Wedge Cutting Machine Rotor Casting Equipment For Washing Machine Motor

SMT - ZL4080 Wedge Cutting Machine Rotor Casting Equipment For Washing Machine Motor

    • SMT - ZL4080 Wedge Cutting Machine Rotor Casting Equipment For Washing Machine Motor
    • SMT - ZL4080 Wedge Cutting Machine Rotor Casting Equipment For Washing Machine Motor
  • SMT - ZL4080 Wedge Cutting Machine Rotor Casting Equipment For Washing Machine Motor

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / SGS Audit
    Model Number: SMT-ZL4080

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Automatic Motor Rotor Die Casting Machine is packed by wood case. Or, we can do it as your order.
    Delivery Time: 29 - 67 days
    Payment Terms: T/T, L/C
    Supply Ability: 1pcs / 29 - 67 days
    Contact Now
    Detailed Product Description
    Name: Automatic Rotor Casting Machine / Equipment For Washing Machine Motor Working Station: 4 Pcs
    Rotor O.D: 40~80mm Core Length: ≤ø80mm
    Max. Operation Pressure: 22.6MPa Power Supply: 380V/50/60 9Kw
    Max Die-casting Volume: 0.6Kg Pitch Time: Less Than 8s
    Fuel Tank Capacity: 425L

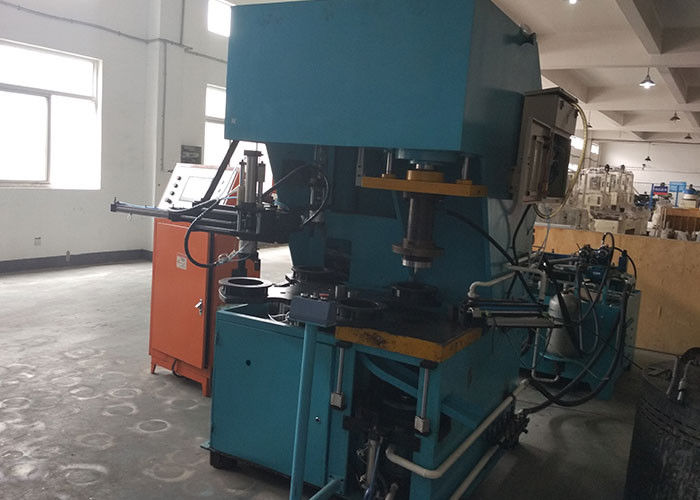

    Automatic Rotor Casting Machine / Equipment For Washing Machine Motor SMT- ZL4080



    This kind of Aluminium Rotor Die-casting Machine is used for producing cast-aluminum rotor. It is high efficient with 4 working stations. Automatic Rotor Die Casting machine, aroun 8s/ pc, scrap automatic recycling

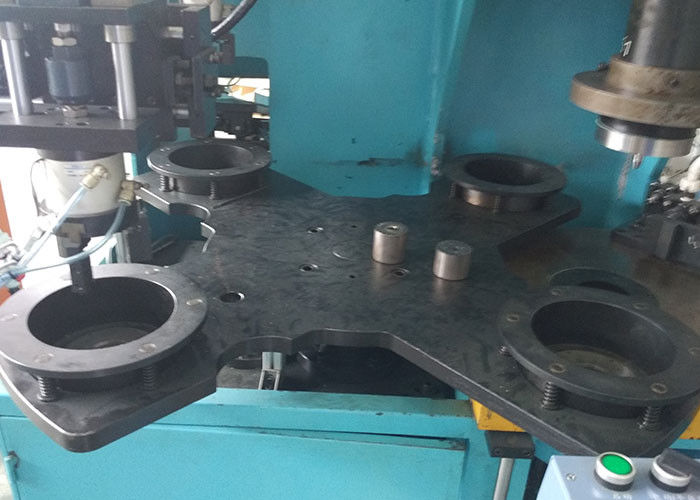

    It is 4 working station rotay plate. Mechanical arm takes and puts self-rivet rotor core in the loading station, and then operator injects liquid aluminum in the casting station, which has somke-sucking system, auto releasing agent spraying system and cooling system, aluminum scraps come back to the aluminum melt oven. It owns the merit of saving labor cost, high efficiency and low tooling cost etc.



    (1) Main Technical Features Of Our Product



    Rotor O.D 40~80mm
    Rotor stack length 16~100mm
    Pitch time less than 8s
    Upper presser operation pressure 40T
    Bottom presser operation pressure 12T
    Max die-casting volume 0.6Kg
    Fuel tank capacity 425L
    Injection piston running speed slow injection-190mm/s, fast injection-600mm/s
    Motor power of 40L Variable piston hydraulic pump 7.5kw
    Max. operation pressure 22.6MPa
    Machine Dimension 1800(L)X1800(W) X 2350(H)mm
    Total Power about 8.5Kw



    (2) Application



    1. It is in 4 working station in rotary plate. .
    2. Mechanical arms takes and puts self- rivet rotor core in the loading station,and then operator injects liquid aluminum in the casting station , which has smoke-sucking sysytem ,auto releasing agent spraying system and cooling system ,aluminum scraps come back to the aluminum melt oven.
    3. It owns the merit of saving labor cost , high effiency and low tooling cost etc.


    (3) Machine Main Characteristic


    The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.

    Electric engines of generators, electric engines of washing machine, air conditioning, water pump, compressors, electric engines of fan, also applicable to copper wires, aluminum wires and some special wires, Fan motors, washing machine motor, and all kinds of small motor, square, circular, multi-layer coil winding .



    (4) OEM/ODM



    Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
    Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
    Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
    Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



    (5)Production Line Profile



    With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

    SMT - ZL4080 Wedge Cutting Machine Rotor Casting Equipment For Washing Machine Motor

    (6) About Us



    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
    SMT - ZL4080 Wedge Cutting Machine Rotor Casting Equipment For Washing Machine Motor
