Multi Stations Automatic Rotor Aluminum Die-Casting Filling Machine

Multi Stations Automatic Rotor Aluminum Die-Casting Filling Machine

  • High Light

    motor coil winding machine

    ,

    bearing pressing machine

  • Name
    Automatic Rotor Casting Machine / Equipment For Washing Machine Motor
  • Working Station
    4 Pcs
  • Rotor O.D
    40~80mm
  • Core Length
    ≤ø80mm
  • Max. Operation Pressure
    22.6MPa
  • Power Supply
    380V/50/60 9Kw
  • Max Die-casting Volume
    0.6Kg
  • Pitch Time
    Less Than 8s
  • Fuel Tank Capacity
    425L
  • Machine Dimension
    1800(L)X1800(W) X 2350(H)mm
  • Total Power
    About 8.5Kw
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / SGS Audit
  • Model Number
    SMT-ZL4080
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiable
  • Packaging Details
    Automatic Motor Rotor Die Casting Machine is packed by wood case. Or, we can do it as your order.
  • Delivery Time
    29 - 67 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 29 - 67 days

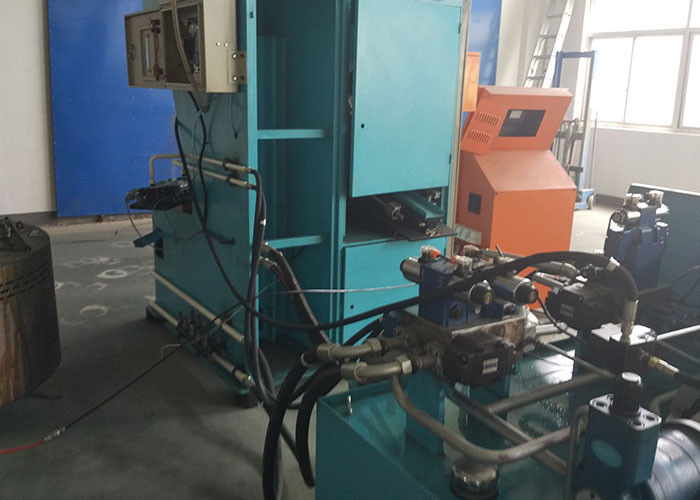

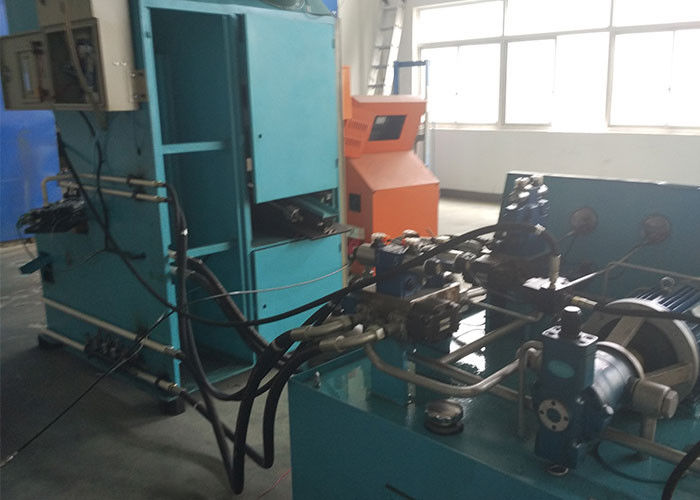

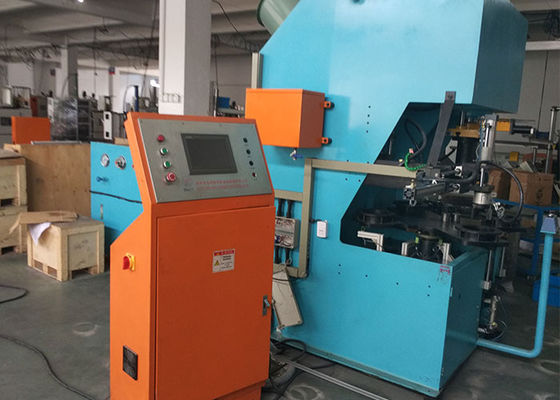

Multi Stations Automatic Rotor Aluminum Die-Casting Filling Machine

Multi Stations Automatic Rotor Aluminum Die-Casting Filling Machine / Electric Motor Machine SMT- ZL4080





This kind of Aluminium Rotor Die-casting Machine is used for producing cast-aluminum rotor. It is high efficient with 4 working stations. Automatic Rotor Die Casting machine, aroun 8s/ pc, scrap automatic recycling

It is 4 working station rotay plate. Mechanical arm takes and puts self-rivet rotor core in the loading station, and then operator injects liquid aluminum in the casting station, which has somke-sucking system, auto releasing agent spraying system and cooling system, aluminum scraps come back to the aluminum melt oven. It owns the merit of saving labor cost, high efficiency and low tooling cost etc.



(1) Main Technical Features Of Our Product



Rotor O.D 40~80mm
Rotor stack length 16~100mm
Pitch time less than 8s
Upper presser operation pressure 40T
Bottom presser operation pressure 12T
Max die-casting volume 0.6Kg
Fuel tank capacity 425L
Injection piston running speed slow injection-190mm/s, fast injection-600mm/s
Motor power of 40L Variable piston hydraulic pump 7.5kw
Max. operation pressure 22.6MPa
Machine Dimension 1800(L)X1800(W) X 2350(H)mm
Total Power about 8.5Kw



(2) Application



1. It is in 4 working station in rotary plate. .
2. Mechanical arms takes and puts self- rivet rotor core in the loading station,and then operator injects liquid aluminum in the casting station , which has smoke-sucking sysytem ,auto releasing agent spraying system and cooling system ,aluminum scraps come back to the aluminum melt oven.
3. It owns the merit of saving labor cost , high effiency and low tooling cost etc.


(3) Machine Main Characteristic



Automatic get aluminium melt liquid, automatic loading and unloading the rotor.
Rotor loading: automatic pneumatic circularly pick up.
Get aluminium melting liquid: servo motor control the mechanical arm, control the liquid volume through human-machine interface.
Automatic cut the waste material, automatic recycle the cut wasted material and convey it to the furnace by the conveyor.
Automatic feed mold releasing agent, the feeding time and times can be set.
There is water cooling channel, helpful for reducing the mold temperature effectively.
Setting on touch screen: forward and backward speed, stroke, swing angle of the mechanical arm, loading speed,etc.



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5)Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

Multi Stations Automatic Rotor Aluminum Die-Casting Filling Machine 0

(6) About Us



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
Multi Stations Automatic Rotor Aluminum Die-Casting Filling Machine 1
