SMT - YM08 Wedge Cutting Machine For Pump Motor / Air Conditioner Motor

SMT - YM08 Wedge Cutting Machine For Pump Motor / Air Conditioner Motor

  • High Light

    motor coil winding machine

    ,

    Rotor Casting Machine

  • Name
    End Cover Bearing Pressing Machine For Pump Motor
  • Model
    YM08
  • Cylinder Pressure
    5T (pressurize)
  • Working Station Number
    8pcs
  • Efficiency
    2-5s/p
  • Power Supply
    220V/50/60Hz 0.75Kw
  • Weight
    412Kg
  • Dimension
    (L)722×(W)603×(H)1652mm
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / SGS Audit
  • Model Number
    SMT-YM08
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiable
  • Packaging Details
    Automatic Motor Rotor Die Casting Machine is packed by wood case. Or, we can do it as your order.
  • Delivery Time
    37 - 69 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 37 - 69 days

SMT - YM08 Wedge Cutting Machine For Pump Motor / Air Conditioner Motor

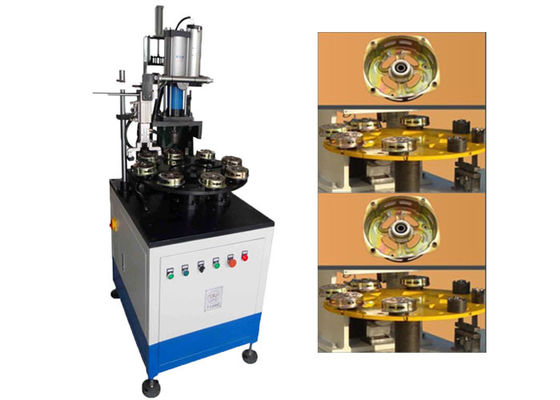

Automatic Motor End Cover And Bearing Pressing Machine For Air Conditioner Motor / Compressor Motor SMT - YM08





End cover bearing riveting machine is specially designed for automatic assembling sintered bush into steel casing end cover; displace the traditional pressing method characterize by high labor intensity and low safety standard; operate with eight-station circulation; automatic feeding, simple operation, high safety standard and stable pressure; reduce the quality problem caused by abnormal bush motion. Operator only need to load the workpiece manually, reviting and unloading is proceed automatically.



(1) Main Technical Features Of Our Product



Model YM08
Cylinder pressure 5T (pressurize)
Working station number 8
Working mode Continuously/Circulation
Efficiency 2-5s/p
Air pressure ≥0.5MPa
Power supply 220V/50/60Hz 0.75Kw
Weight ≈412Kg
Dimension (L)722×(W)603×(H)1652mm



(2) Application



1. Specially designed for automatic assembling sintered bush into steel casing end over;
2. displace the traditional pressing method characterized by high labor intensity and low safety standard;
3. operate with eight-station circulation;
4. automatic feeding, simple operation, high safety standard and stable pressure;
5.reduce the quality problem caused by abnormal bush motion.


(3) Machine Main Characteristic


The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.

Electric engines of generators, electric engines of washing machine, air conditioning, water pump, compressors, electric engines of fan, also applicable to copper wires, aluminum wires and some special wires, Fan motors, washing machine motor, and all kinds of small motor, square, circular, multi-layer coil winding .



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5) Production Line Profile



With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

SMT - YM08 Wedge Cutting Machine For Pump Motor / Air Conditioner Motor 0

(6) About Us



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
