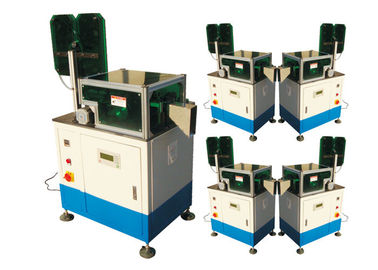

Electric Motor Stator Slot Insulation Paper Forming And Cutting Machine Motors

Electric Motor Stator Slot Insulation Paper Forming And Cutting Machine Motors

    • Electric Motor Stator Slot Insulation Paper Forming And Cutting Machine Motors
    • Electric Motor Stator Slot Insulation Paper Forming And Cutting Machine Motors
  • Electric Motor Stator Slot Insulation Paper Forming And Cutting Machine Motors

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO/SGS Audit
    Model Number: SMT-CG200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Polywood Case With Reinforcement.
    Delivery Time: 39 - 69 days
    Payment Terms: T/T, L/C
    Supply Ability: 1pcs / 39 - 68 days
    Contact Now
    Detailed Product Description
    Name: Stator Automatic Insulation Paper Forming And Cutting Machine Feeding Length: 9~200mm
    Folding Width: 2~5mm, Adjustable Folding & Cutting Precision: 0.2mm
    Machine Weight: About 213kg Dimension (L X W X H): 441 X 931 X 1211mm
    Modle: SMT-CG200

    Electric Motor Stator Slot Insulation Paper Forming And Cuting Machine AC / DC Motors / Electric Motor Machine SMT-CG200



    Stator insulation paper forming and cutting machine is applied for hand-made and multi sizes motor( Heating forming model could be tailor-made). Paper feeding by stepping motor; length of edge fold, paper feeding length and width is adjustable; output could be set.


    (1) Main Technical Features Of Our Machine


    Item Data
    Model CG200
    Suitable paper roll width 20~140mm
    Suitable paper thickness 0.16~0.36mm
    Feeding Length 9~200mm
    Folding Width 2~5mm, adjustable
    Cutting Speed About 130 pieces per minute
    Folding & Cutting Precision 0.2mm
    Power supply 220V, 50/60Hz, 0.5kW
    Machine weight About 213kg
    Dimension (L x W x H) 441 x 931 x 1211mm


    (2) Application

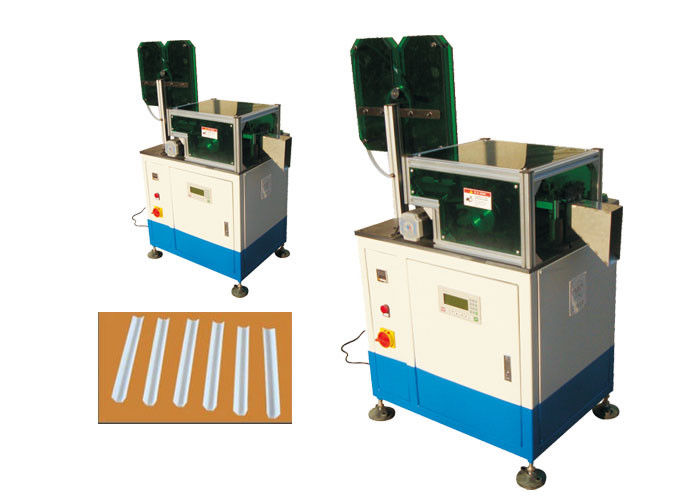

    Insulation paper forming and cutting machine feeds insulation paper from the reel, forms it to suit the shape of stator slot with heater and cuts it to a preset length. The only thing operator has to do is to load and unload the insulation paper and press button to start cutting.

    Ningbo Hisky motor technology co.,ltd is a professional manufacturer and supplier of insulation paper forming and cutting machine from china. After years of market development, our products have been exporting to Europe, America, Asia and other international markets. When you need to improve your production process, please feel free to contact us and find out how our machine perform.

    (3) Machine Main Characteristic


    It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
    The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.

    Electric engines of generators, electric engines of washing machine, air conditioning, water pump, compressors, electric engines of fan, also applicable to copper wires, aluminum wires and some special wires, Fan motors, washing machine motor, and all kinds of small motor, square, circular, multi-layer coil winding .


    (4) OEM/ODM


    Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
    Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
    Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
    Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.


    (5) Production Line Profile


    With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.


    (6) About Our Factory


    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
