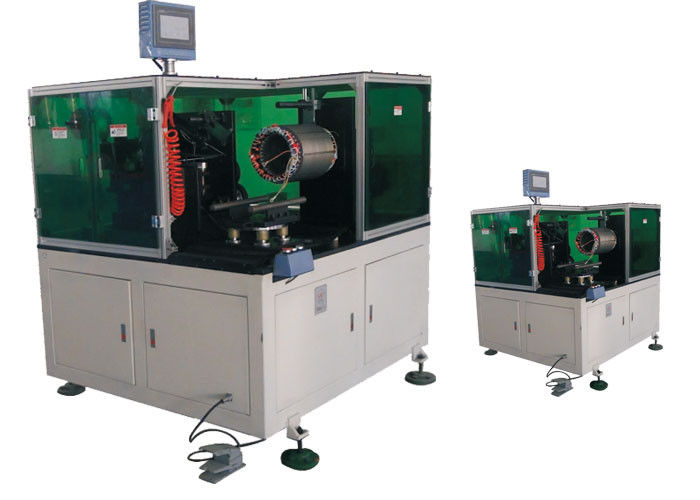

    Name: Pump Motor Production Equipment / Coil Lacing Machine Model: SMT-DW350
    Stack Height: 100 - 260mm Power Supply: 380v/50/60Hz 0.75kw
    Automatic Grade: Semiautomatic Customized: Yes
    Working Type: Horizontal Lacing Power: Servo Motor

    Pump Motor Production Equipment Induction Motor Winding Machine SMT - DW350





    Based on your production needs
    1. Design the suitable product or production line for you ,OEM and ODM available
    2. We have professional and rich experience engineers in the domestic and overseas.
    3. We will wind and test the samples in our plant before delivery

    After-sales service:
    1, Warranty Period: 1 year
    2. Engineers available to service machinery overseas



    (1) Main Technical Description



    Model DW350
    Stator I.D. 120-250mm
    Stator O.D. 210-350mm
    Core length 120-300mm
    Overhang coils height 20-85mm
    Slot Number 24-60
    Lacing Speed about 0.7s/s
    Power Supply 380V/50/60Hz 7Kw
    Dimension (L)1550*(W)1350*(H)1500mm
    MOQ 1 set Single Side Lacing Machine



    (2) Advantage



    This machine adopts servo driven system, CNC control design and HIM program.

    The indexing is driven by servo system. Different lacing mode could be set such as slot lacing, interval lacing, and fancy lacing.

    Main spindle adopts servo control system. The rotation speed can be set.

    Two needles driven by servo system lace upper and lower coil simultaneously.

    Machine can automatically feed thread and cut thread. There is no need to tie a knot.

    Tooling change is fast and convenient. Stator stack length range is 50-130mm.

    Lacing tension can be set,

    Production capacity ≤1s/slot.

    Should be no copper wire snap and wire enamel broken.

    Primary qualification rate ≥98.5%, after rework, the rate ≥99.5%

    his machine adopts safety grating protection system. Operator need to stand when operating.

    Machine adopts two hands simultaneously start button to ensure safety.


    (3) Machine Main Characteristic



    1. Adapting industrial PLC, human-computer interface and horizontal frame-structure design, the servo system machine accurately controls the lacing action.

    2. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable.

    3. This machine is suitable for the big stator with high winding over-hang.

    4. The tooling is movable and convenient for stator fast loading and unloading, hence to reduce the labor strength effectively.



    (4) OEM/ODM



    The company mainly produces motor machinery and equipment. Our products mainly include automatic winding machine, lacing machine, inserting machine, shaping machine, forming machine etc. We adopt overseas advanced technology and processes and corporate willpower to improve electromechanical fully automated factory production capacity, with the most stable quality and customer service to get the biggest trust.

    We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.



    (5) Production Line Profile



    With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

    Pump Motor Production Equipment Induction Motor Winding Machine  SMT - DW350

    (6) About Suzhou Smart motor Equipment Manufacturing Co.,Ltd



    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments.
