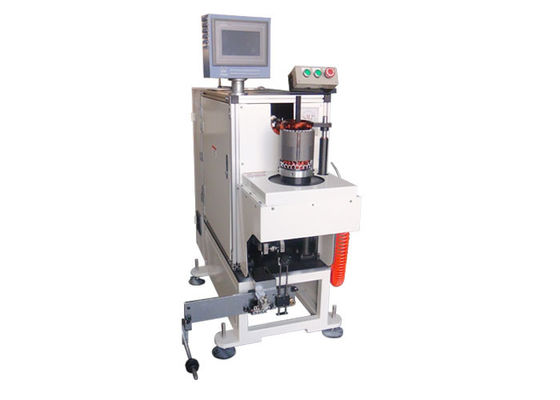

Small Motor Automatic Stator Wire Coil Winding Inserting Lacing Machine SMT - DB160

Small Motor Automatic Stator Wire Coil Winding Inserting Lacing Machine SMT - DB160

Small Motor Automatic Stator Wire Coil Winding Inserting Lacing Machine SMT - DB160

Product Details:

Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT - DB160

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Stator lacing machine is packed with wood case.
Delivery Time: 2.5 - 3.1 months
Payment Terms: T/T , L/C
Supply Ability: 1pcs / 2.5 - 2.1 months
Detailed Product Description
Name: Automatic Cable Coil Needle Lacing Machine For Motor Stator Weight: 710kgs
Machine Dimension: (L)1000*(W)600*(H)1250mm Lacing Mode: Slot By Slot/ Interval Slot
G Lacing Speed: About 0.55s/s Warranty: One Year
Height Of Coil: ≤50mm Lacing Speed: 0.8 S/s

Motor Servo Double Side Coil Lacing Machine Motor Production Machine SMT - DB160





Stator is loaded on Single-head Coil Winding Lacing Machine vertically; PLC programming; single-needle and single-side automatic lacing; needle transpositioning, hooking are controlled by servo system; spindle adopts frequency speed control; slot by slot lacing, intercal lacing, and fancy lacing could be achieved by setting in human-machine interface lacing; especially apply to multi sizes, low output or more lead stator winding.



(1) Main Technical Information



Model DB160
Stack Height 80-160mm
Stator I.D. 40-120mm
Stator O.D. ≤180mm
Height of coil ≤50mm
Lacing Mode Slot by slot/interval slot/Fancy lacing
Lacing Speed About 0.8s/s
Power Supply 220V/50/60Hz 2Kw
Weight 700kgs
Machine dimension (L)1000*(W)600*(H)1250mm



(2) Advantage



This machine adopts servo driven system, CNC control design and HIM program.

The indexing is driven by servo system. Different lacing mode could be set such as slot lacing, interval lacing, and fancy lacing.

Main spindle adopts servo control system. The rotation speed can be set.

Two needles driven by servo system lace upper and lower coil simultaneously.

Machine can automatically feed thread and cut thread. There is no need to tie a knot.

Tooling change is fast and convenient. Stator stack length range is 50-130mm.

Lacing tension can be set,

Production capacity ≤1s/slot.

Should be no copper wire snap and wire enamel broken.

Primary qualification rate ≥98.5%, after rework, the rate ≥99.5%

his machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.


(3) Machine Main Characteristic



1. Adapting industrial PLC, human-computer interface and horizontal frame-structure design, the servo system machine accurately controls the lacing action.

2. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable.

3. This machine is suitable for the big stator with high winding over-hang.

4. The tooling is movable and convenient for stator fast loading and unloading, hence to reduce the labor strength effectively.



(4) OEM/ODM



The company mainly produces motor machinery and equipment. Our products mainly include automatic winding machine, lacing machine, inserting machine, shaping machine, forming machine etc. We adopt overseas advanced technology and processes and corporate willpower to improve electromechanical fully automated factory production capacity, with the most stable quality and customer service to get the biggest trust.

We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.



(5) Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.



(6) About Suzhou Smart motor Equipment Manufacturing Co.,Ltd



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments.

Small Motor Automatic Stator Wire Coil Winding Inserting Lacing Machine SMT - DB160
