Automatic Fusing Machine Metal Welder for Rope Stranded Wire with Flat Cable Welding

Automatic Fusing Machine Metal Welder for Rope Stranded Wire with Flat Cable Welding

Automatic Fusing Machine Metal Welder for Rope Stranded Wire with Flat Cable Welding

Product Details:

Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT- K3220

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Packed with vacuum film in plywood case. Or, we can do it as your order.
Delivery Time: 50 - 78 days
Payment Terms: T/T, L/C
Supply Ability: 1pcs / 50 - 78 days
Contact Now
Detailed Product Description
Name: Metal Welder For Rope Stranded Wire With Flat Cable Welding Machine Model Number:: K3220
Power Supply: 400VAC, 50 Hz – 60 Amp Min.Temperature: 15°C
Weight: 960Kg Color: Orange
Type: Spot Welders

Automatic Fusing Machine Metal Welder for Rope Stranded Wire with Flat Cable Welding





Applicable products such as :


Battery/ Cell connectors, terminals, solar energy
Nickel - hydrogen batteries, nickel mesh and nickel sheet welding
Lithium - ion battery, polymer battery, Copper foil and Nickel sheet welding, Aluminium Foil and aluminium sheet welding, Copper foil and Nickel plate ( cathode ) welding, Aluminium Foil and aluminium plate ( anode ) welding, Aluminum and nickel, NI-AL, cover plate, nut cap welding.
Wire fusing welding , form one with more welding
Wire welding with a variety of electronic components , connectors, contacts: SMD thick film resistors, SMD inductor, relay, solenoid switches, no-fuse switches, connectors, diodes, Electrolytic Capacitors lug, mutual inductor
For variety of household appliances, locomotives of Large - scale thermal seat, heat exchange fins, honeycomb core fusion
High current contacts of Solenoid switch and non-fusible switch, fusion welding between dissimilar metal pieces
Metal tube sealing and cutting can be watertight and airtight
Car accessories : airbag wiring harness, slip ring, filament, the light cover



(1) Product General Information



Brand Name: SMT
Model Number: K3220
Certification: SGS/ISO9001
Place of Origin: China



Product Name Stator Lead Wire Tube Fusing Machine Application Electric motor stator production
Status New Paint On request
Warranty time One year after machine(s) arrive in customer’s plant Service Overseas service center available





(2) Description

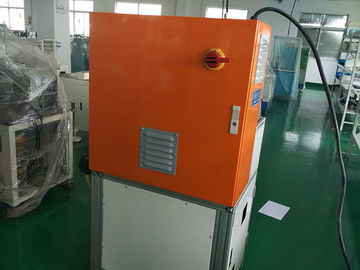

1.Machine, electrical cabinet and disconnect mounted to aluminum extrusion table.
2.Heavy duty construction utilizing SMT K-Head design.
3.SMT machine enamel paint unless otherwise quoted.
4.20 kva water cooled transformer.
5.400VAC, 50 Hz – 60 Amp input required.
7.Control of squeeze time (prior to fuse), upslope time, fuse time, fuse current, cool time, repeats, hold time and force of head during fuse.
8.Capability to store and recall up to fifty (50) different fuse schedules.


(3) Patented Tube Fusing Technology



In tube fusing, traditional connectors are made redundant by a simple and inexpensive tube which captures the wires to be connected. Resistively heated fusing electrodes apply the necessary pressure and heat to the tube/wire bundle to make a reliable connection. These machines are versatile for most any application including fusing magnet wires, Litz.wire and/or insulated leads within a tube terminal.



(4) Eliminate Stripping and Brazing



This patented technology eliminates the need for an operator to strip the magnet wire from the leads prior to fusing the lead bundle. Capable of fusing up to 150*18AWG(1.0mm) wires in parallel, the heat of the fusing operation burns off the wire enamel while the tin from the tube cleans the area to be connected. The force of the head combined with the controlled heating of the electrode creates a reliable connection while minimizing manual operations.



(5) Thermal Crimp Fusing Technology



With the patented thermal crimp technology, the connector is automatically made from a strip of tinned copper material. This connector is then presented to the operator for placement of the magnet wire and/or lead wire. Once fused, excess wire is trimmed from the connector resulting in the smallest possible package with the highest quality connection.

Automatic Fusing Machine Metal Welder for Rope Stranded Wire with Flat Cable Welding

(6) About Us



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
Automatic Fusing Machine Metal Welder for Rope Stranded Wire with Flat Cable Welding
