    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / SGS Audit
    Model Number: SMT- K3220

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Packed with vacuum film in plywood case. Or, we can do it as your order.
    Delivery Time: 51 - 67 days
    Payment Terms: T/T, L/C
    Supply Ability: 1pcs /51 - 67 days
    Contact Now
    Detailed Product Description
    Name: Automatic Metal Welder / Wire Tube Fusing Machine Model Number:: K3220
    Power Supply: 400VAC, 50 Hz – 60 Amp Min.Temperature: 15°C
    Weight: 950Kg Color: Orange/Blue

    Metal Welder Automatic Fusing Machine Multi-wire Ends Welding





    Rope Stranded wire with flat cable welding
    Rotor and Rectifier welding
    Rare Metal electrical connector welding
    large - scale wires and terminals welding
    Copper terminals with beryllium copper alloy welding
    Electromagnetic Wire terminal welding
    Brush braided copper wire and primary power cable welding
    Multi-wire ends welding
    rope stranded wire with terminals welding
    Contact assembly welding



    (1) Product General Information



    Brand Name: SMT
    Model Number: K3220
    Certification: SGS/ISO9001
    Place of Origin: China



    Product Name Stator Lead Wire Tube Fusing Machine Application Electric motor stator production
    Status New Paint On request
    Warranty time One year after machine(s) arrive in customer’s plant Service Overseas service center available





    (2) Description



    1.Machine, electrical cabinet and disconnect mounted to aluminum extrusion table.
    2.Heavy duty construction utilizing SMT K-Head design.
    3.SMT machine enamel paint unless otherwise quoted.
    4.20 kva water cooled transformer.
    5.400VAC, 50 Hz – 60 Amp input required.
    7.Control of squeeze time (prior to fuse), upslope time, fuse time, fuse current, cool time, repeats, hold time and force of head during fuse.
    8.Capability to store and recall up to fifty (50) different fuse schedules.


    (3) Patented Tube Fusing Technology



    In tube fusing, traditional connectors are made redundant by a simple and inexpensive tube which captures the wires to be connected. Resistively heated fusing electrodes apply the necessary pressure and heat to the tube/wire bundle to make a reliable connection. These machines are versatile for most any application including fusing magnet wires, Litz.wire and/or insulated leads within a tube terminal.



    (4) Eliminate Stripping and Brazing



    This patented technology eliminates the need for an operator to strip the magnet wire from the leads prior to fusing the lead bundle. Capable of fusing up to 150*18AWG(1.0mm) wires in parallel, the heat of the fusing operation burns off the wire enamel while the tin from the tube cleans the area to be connected. The force of the head combined with the controlled heating of the electrode creates a reliable connection while minimizing manual operations.



    (5) Thermal Crimp Fusing Technology



    With the patented thermal crimp technology, the connector is automatically made from a strip of tinned copper material. This connector is then presented to the operator for placement of the magnet wire and/or lead wire. Once fused, excess wire is trimmed from the connector resulting in the smallest possible package with the highest quality connection.

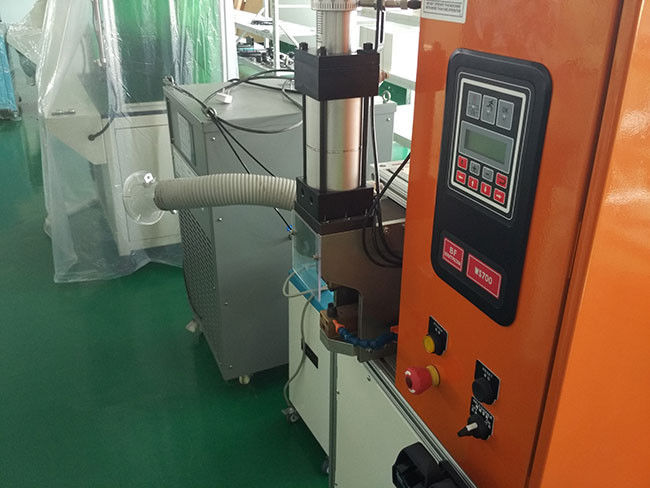

    Metal Welder Automatic Fusing Machine Multi-wire Ends Welding

    (6) About Us



    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.

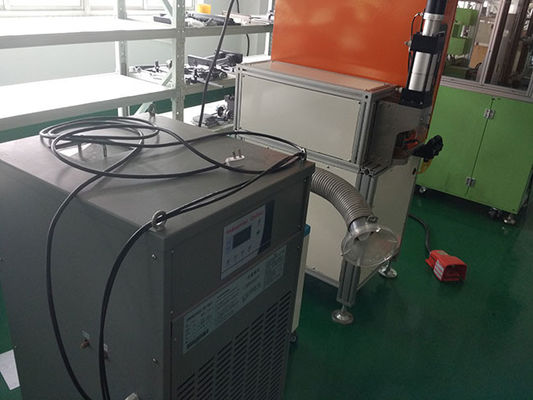

    Metal Welder Automatic Fusing Machine Multi-wire Ends Welding
