|Name:||Automatic Hook And Riser Type Commutator Fusing Machine With Conveyor||Model Number::||K3220|
|Power Supply:||400VAC, 50 Hz – 60 Amp||Min.Temperature:||15°C|

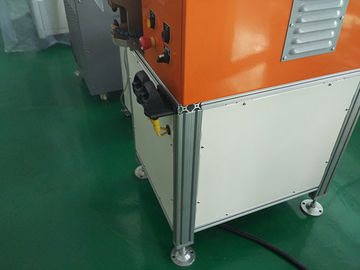

Auto Hook And Riser Type Automatic Fusing Machine With Conveyor
1. Commutator OD ranges from15~40mm.
2. Armature OD. φ10mm-φ50mm
3. It has colorful touch screen, and data setting can be done on the touch sreeen.
4.This machine is equipped with conveyor so that it can be connected with other machine to make a armature production line.
5. This machine is controlled by PLC.
(1) Product General Information
|Place of Origin:||China|
|Product Name||Stator Lead Wire Tube Fusing Machine||Application||Electric motor stator production|
|Warranty time||One year after machine(s) arrive in customer’s plant||Service||Overseas service center available|
1.Machine, electrical cabinet and disconnect mounted to aluminum extrusion table.
2.Heavy duty construction utilizing SMT K-Head design.
3.SMT machine enamel paint unless otherwise quoted.
4.20 kva water cooled transformer.
5.400VAC, 50 Hz – 60 Amp input required.
7.Control of squeeze time (prior to fuse), upslope time, fuse time, fuse current, cool time, repeats, hold time and force of head during fuse.
8.Capability to store and recall up to fifty (50) different fuse schedules.
(3) Patented Tube Fusing Technology
In tube fusing, traditional connectors are made redundant by a simple and inexpensive tube which captures the wires to be connected. Resistively heated fusing electrodes apply the necessary pressure and heat to the tube/wire bundle to make a reliable connection. These machines are versatile for most any application including fusing magnet wires, Litz.wire and/or insulated leads within a tube terminal.
(4) Eliminate Stripping and Brazing
This patented technology eliminates the need for an operator to strip the magnet wire from the leads prior to fusing the lead bundle. Capable of fusing up to 150*18AWG(1.0mm) wires in parallel, the heat of the fusing operation burns off the wire enamel while the tin from the tube cleans the area to be connected. The force of the head combined with the controlled heating of the electrode creates a reliable connection while minimizing manual operations.
(5) Thermal Crimp Fusing Technology
With the patented thermal crimp technology, the connector is automatically made from a strip of tinned copper material. This connector is then presented to the operator for placement of the magnet wire and/or lead wire. Once fused, excess wire is trimmed from the connector resulting in the smallest possible package with the highest quality connection.
