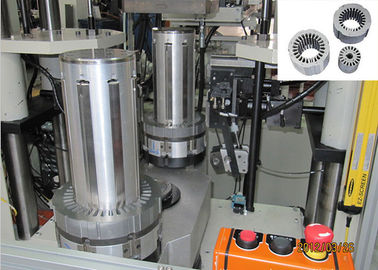

Precision Electric Motor Winding Machine for Motor Lamination Motor Stator Rotor

Precision Electric Motor Winding Machine for Motor Lamination Motor Stator Rotor

Precision Electric Motor Winding Machine for Motor Lamination Motor Stator Rotor

Product Details:

Place of Origin: China
Brand Name: SMT
Certification: ISO/SGS Factory Inspection
Model Number: SMT-IC-4

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wood Box As Your Asking.
Delivery Time: 44-66 days
Payment Terms: L/C, T/T
Supply Ability: 1pcs 44-66 days
Contact Now
Detailed Product Description
Name: Precision Machine For Motor Lamination Motor Stator Rotor / Motor Core Maximum Stator O.D.: 8 Inches, 200mm.
Automatic: Full-Automatic Usage: Stator
Stator Slot Number: 70 Stacking: Welding
Our Service: Oversea Service Is Ok Quality Guarantee Period: 10 Months

Precision Electric Motor Winding Machine for Motor Lamination Motor Stator Rotor



During the past over 10 years,we have cooperated with a lot of customers domestic and abroad,some of which are well-known companies,such as A.O.Smith,Emerson,Siemens,Panasonic,WEG,Bosch etc,and our market has expanded from Asia to Mid East,Europe and South America.


1. Main Technical Information Of Our Product:


Brand Name: SMT
Model Number: IC-4
Certification: CE/SGS/BV/ISO9001
Place of Origin: China


2. Product Description


Product Name Stator lamination Cleating Machine Application Electric motor stator production
Status New Paint On request
Warranty time One year after machine(s) arrive in customer’s plant Service Overseas service center available


3. Our Service


Minimum Order Quantity: 1 set
Price: TBD
Payment Terms: T/T
Delivery Time: 45 workdays after receiving downpayment
Packaging Details: Packed with vacuum film in plywood case


4. Competitive Advantage:

Four cleating heads with expanding mandrel for multiple cleating of stator lamination.

1. Basic machine complete with controls, less tooling.
2. Heavy duty construction.
3. Customer specified color machine enamel paint.
4. Self-contained hydraulic power pack.
5. Allen Bradley Programmable Controls.
6. Slide in/out expanding mandrel.
7. Guarded for operator protection.
8. Maximum stack height 4 inches, 100mm.
9. Minimum stack height ½ inch, 12mm.
10. Maximum stator O.D. 8 inches, 200mm.
11. Hydraulic feed rate control.
12. Roll form cleating principle.
13. Hydraulic compression of stack.
14. Four (4) strip steel dereelers included.
15. Number of cleats, 4 - Standard.
16. Fully automatic cycle.


5. About Our Factory:


Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
