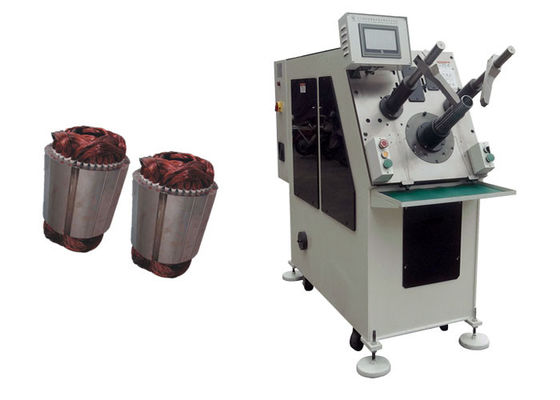

High Precision Electric Stator Winding Machine SMT - K90 ≤160mm Stator OD

    • High Precision Electric Stator Winding Machine SMT - K90 ≤160mm Stator OD
    • High Precision Electric Stator Winding Machine SMT - K90 ≤160mm Stator OD
  • High Precision Electric Stator Winding Machine SMT - K90 ≤160mm Stator OD

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / SGS Audit
    Model Number: SMT-k90

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Plywood Box With Plastic Bag.
    Delivery Time: 34-72 days
    Payment Terms: T/T, L/C
    Supply Ability: 1pcs / 34-71 days
    Contact Now
    Detailed Product Description
    Name: High Precision Electric Stator Winding Inserting Machine Stator I.D.: 20-100mm
    Stator O.D.: ≤160mm Tooling Travel: 3-10mm
    Appropriate Wire: Copper/Alum Wire Color: White
    Slot Number Range: 8~48 Slot Weight: 862KG

    High Precision Electric Stator Winding Machine SMT - K90 ≤160mm Stator OD




    SMT stator coil inserting machines are available in many different versions that can be individually equipped with several options.This series are economic machine for standard stators. The machines allow highest fill-factors and narrow slot openings. This is controlled by a precision servo motor so different wedge pattern configurations can be set up to control the amount of slot wedges and length of slot wedges fed into the magazine of the coil inserting machine.

    (1) Main Technical Data



    Model SMT-K90
    Stator I.D Φ20~Φ100mm
    Stator O.D Φ30~Φ160mm
    Stack height 10~110mm
    Tooling travel --------------------------
    Appropriate wire copper or aluminium wire
    Slot number range 8~48 slot
    Power supply 380V/50/60Hz 3Kw
    Weight ≈650Kg
    Dimension (L)1800×(W)650×(H)1700mm


    (2) Application

    The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.
    Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.
    We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.
    (3) Machine Main Characteristic

    It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
    The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.

    (4) OEM/ODM

    Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
    Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
    Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
    Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.

    (5) Production Line Profile

    With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
    The machine insert coil and wedge simultaneously, coil insertion is controlled by servo motor system, and wedge insertion by variable frequency motor.
    It is controlled by HMI, and machine can diagnose breakdown automatically.
    This machine is suitable for Polyester Film wedge roll material with fixed thickness and fixed width (width and thickness dimension is provided by customer)
    The wedge feeding is by stepping motor,feeding length, cutting, forming, inserting slot number could be set.
    Both copper wire and aluminium wire are applicable.
    Production capacity ≤25s/set (exclude theman-hours for auxiliary work)
    Primary qualification rate for copper wire≥98.5%, after rework, the rate ≥99.5%
