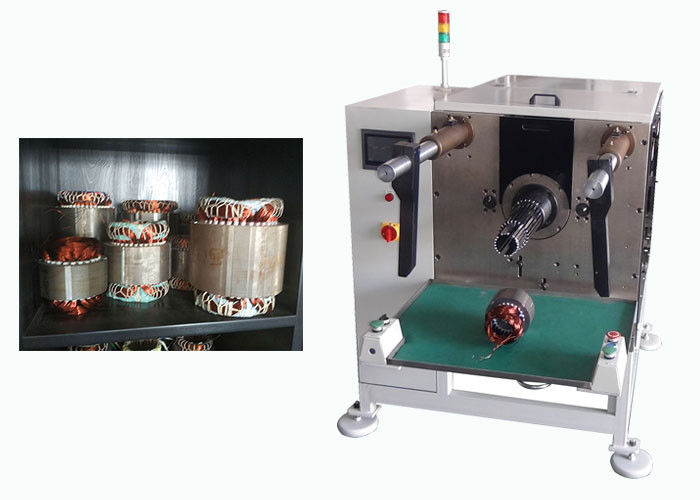

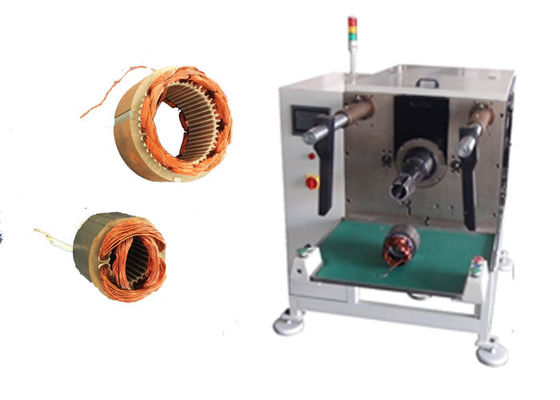

Electric Motor Winding Machine for Big Electric Motors / AC / DC

Electric Motor Winding Machine for Big Electric Motors / AC / DC

    • Electric Motor Winding Machine for Big Electric Motors / AC / DC
    • Electric Motor Winding Machine for Big Electric Motors / AC / DC
  • Electric Motor Winding Machine for Big Electric Motors / AC / DC

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / SGS Audit
    Model Number: SMT-QX08

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Plywood Box With Sealing.
    Delivery Time: 31-71 days
    Payment Terms: T/T, L/C
    Supply Ability: 1pcs / 31-69 days
    Contact Now
    Detailed Product Description
    Name: Winding Inserting Machinery For Big Electric Motors / AC / DC Model: QX08
    Stator I.D.: 60-150mm Stator O.D.: ≤210mm
    Automatic Grade: Semiautomatic Overseas After-Service: Engineers Are Available To Overseas
    Color: White Appropriate Wire: Aluminum/Copper
    Power Source: 380/50/60Hz 4Kw

    Electric Motor Winding Machine for Big Electric Motors / AC / DC





    The coil inserting process is generally the most time consuming element in the manufacture of a stator for an electric motor. It is equally important that the coils are well protected during coil insertion process. In order to offer our customers the perfect solutions, Nide well constructs its machines, even the tooling, which is manufactured to an extremely high standard and well polished and treated to give perfect results.



    (1) Main Technical Features



    Model SMT-QX08
    Stator I.D 60-150mm
    Stator O.D ≤210mm
    Core Length ≤190mm
    Tooling stroke ≤90mm
    Compatible wire CU/AL
    Slot number range 24-48 slots
    Power supply 380V/50/60Hz 5Kw
    Weight 1050kg
    Dimension (L)2370×(W)1160×(H)1710mm



    (2) Application



    The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.


    (3) Our Service



    Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

    We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.



    (4) OEM/ODM



    Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
    Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
    Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
    Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



    (5) Production Line Profile



    With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

    Electric Motor Winding Machine for Big Electric Motors / AC / DC

    (6) About Us



    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
