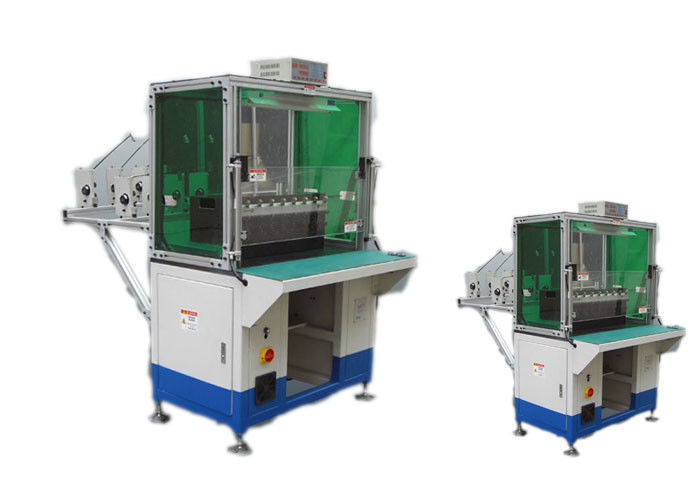

    Name: Fully Automatic External Armature In-Slot Winding Machine Color: White
    Non-Load Speed: ≤1500r/min Flier: 200mm
    Transfer Number: 2-6pcs Power Supply: 220v/50/60Hz 0.75Kw
    Weight: 850kg Dimension: (L)1500*(W)1200*(H)2100mm
    Winding Head: 8pcs Air Pressure: ≥0.45MPa
    Transfer Distance: ≥170mm

    Electric Motor Winding Machine Fully Automatic External Armature in-Slot

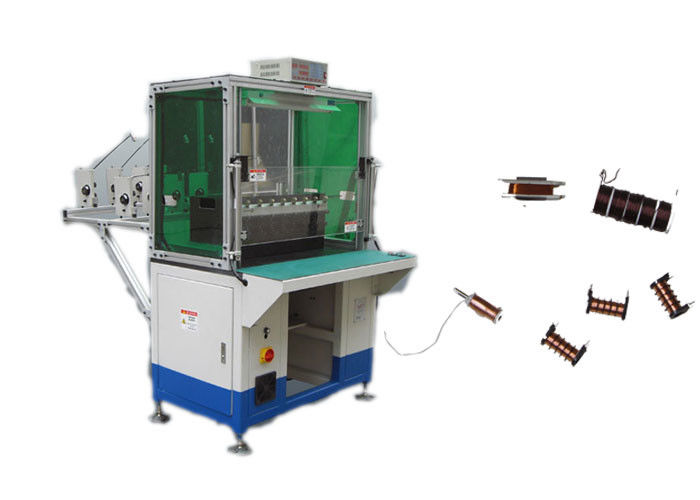

    Full-automatical External Armature Winding Machine is used for external armature winding. Automatically indexing, automatically winding,only load and unload armature manually. It is easy for operation. And with the machine high automation, it is more cost-efficent


    (1) Main Technical Parameter


    Model DR08
    Wire Diameter 0.08-0.8mm
    No - load Speed ≤3000r/min
    Winding head 8pcs
    Diameter of frame 20-120mm
    Max.Transfer distance ≤250mm
    Air Pressure ≥0.4MPa
    Power Supply 220V/50/60Hz 0.75Kw
    Weight 850kgs
    Dimension (L)1500*(W)1200*(H)2100mm


    (2) The operation steps of this machine

    Around 1000pcs/8 hours,it is only a rough idea, depends on the armature slots number and turn number.
    Load armature on the shuttle manually, press START button,shuttle will deliver the armature to the winding position, and automatic winding, indexing and wire cutting,after completing, the shuttle will take out the finished armature from winding position, operator unload the finished armature, one cycle is completed.

    (3) Machine main function and characteristic

    Winding tooling: each machine has one set winding tooling and three vertical winding forms.
    The whole set of tooling can be changed, and it takes about 15min.
    The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
    Allow three wires winding simultaneously.
    Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
    The working rotation speed can be set . Machine has no distinct vibration and noise.
    Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
    PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
    X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
    Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.


    (4) OEM/ODM Profile

    Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.


    (5) Production Line Profile


    With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

    Electric Motor Winding Machine Fully Automatic External Armature in-Slot

    (6) About Smart

    SMT Alliance Automation (Suzhou) Co., Ltd. is the Sino-US joint venture between Suzhou Smart Motor Equipment Manufacturing Co., Ltd. , established in 2010, and Alliance Automation (Suzhou) Ltd., the subsidiary in China of Alliance Winding Equipment, Inc. established in 1947. Based on AWE’s decades of R&D and technology experience, SMT Alliance integrate technology design, manufacturing, managing and marketing to achieve complementary advantages and joint development.
    The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.
