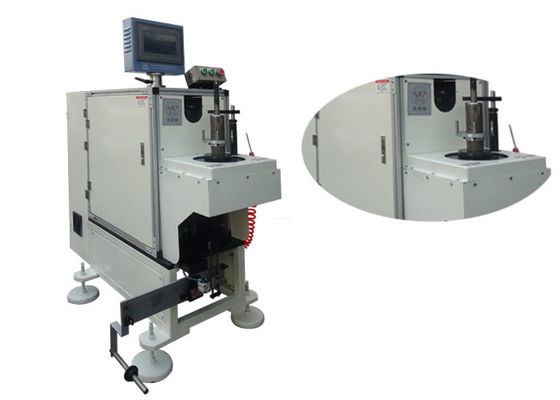

Stator Coil End Turns Head Lacing Machine with Vertical Structure

Stator Coil End Turns Head Lacing Machine with Vertical Structure

    • Stator Coil End Turns Head Lacing Machine with Vertical Structure
    • Stator Coil End Turns Head Lacing Machine with Vertical Structure
  • Stator Coil End Turns Head Lacing Machine with Vertical Structure

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / SGS Audit
    Model Number: SMT - DB100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Coil Head Lacing Machine is packaged with plywood box, its dimension depends on whole size of machines and other parts.
    Delivery Time: 30-40 days after advance payment
    Payment Terms: T/T , L/C
    Supply Ability: 1 Set per 30-40 days
    Contact Now
    Detailed Product Description
    Machine: Stator Coil End Turns Head Lacing Machine With Vertical Structure Type: DB100
    Stator I.D. Min: D35mm Stator I.D. Max: D110mm
    Stack Height Range: 10-100mm Coil Height: ≤Φ40mm
    Weight: ≈600kg

    Stator End Turns Head Lacing Machine with Vertical Structure SMT - DB100





    It's equipped with single lacing needle, which is suitable for production of different stators with small output.



    (1) Main Technical Parameters



    Model

    SMT-DB100

    Stack height

    10~100mm

    Stator I.D

    Φ35~ Φ110mm

    Stator O.D

    ≤Φ160mm

    Height of coil

    ≤Φ40mm

    Lacing mode

    Slot by slot/Interval slot/Fancy slot

    Lacing speed

    ≈0.5s/s

    Power supply

    380V/50/60Hz 2Kw

    Weight

    ≈600Kg

    Dimension

    (L)1000×(W)600×(H)1150mm



    (2) Brief Introduction of Machine



    Stator Coil Head Lacing Macine is used for fixing the coil head to avoid being scattered after forming.

    This kind of lacing machine, Stator Head Lacing Machine, is with only one lacing needle and lacing stator head one by one side, which is simpler than other lacing machines. It's mainly suitable for smaller stators production and stator production with small output.

    It also has higher qualification rate: primary qualification rate ≥98.5%, after rework, the rate ≥99.5%.

    Operators need to stand when operating and start by both hands to ensure safety.



    (3) Main Characteristics



    1. Loading stator vertically;

    2. PLC programming;

    3. Single-needle and single-side automatic lacing;

    4. Needle transposition and hooking are controlled by servo system;

    5. Spindle adopts frequency speed control;

    6. Slot by slot lacing, interval lacing, and fancy lacing could be achieved by setting in human-machine interface;

    7. Especially apply to multi sizes, low output or more lead stator winding lacing.

    With single needle, it is suitable for production of different stators with small output.



    (4) OEM/ODM



    The company mainly produces machinery and equipment for motor production. Our products are mainly automatic winding machine, slot insulation machine, coil head lacing machine, coil inserting machine, forming machine and insulaiton forming machine, etc. Products and manufacturing are as customer's request. During warranty period, 1 year after delivery, our engineers will provide technical support for free. Besides, overseas after-service is available.

    We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.



    (5) Production Line Profile



    With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

    Stator Coil End Turns Head Lacing Machine with Vertical Structure



    (6) Company Profile - Suzhou Smart motor Equipment Manufacturing Co.,Ltd



    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of high-tech key enterprises which is specialize in R&D, manufacturing and selling equipments for motor production in China as well as exporting to the world. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments.
