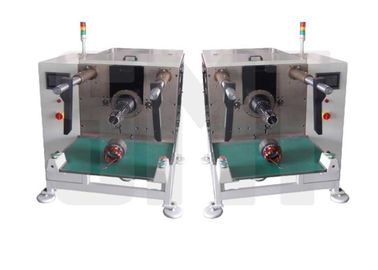

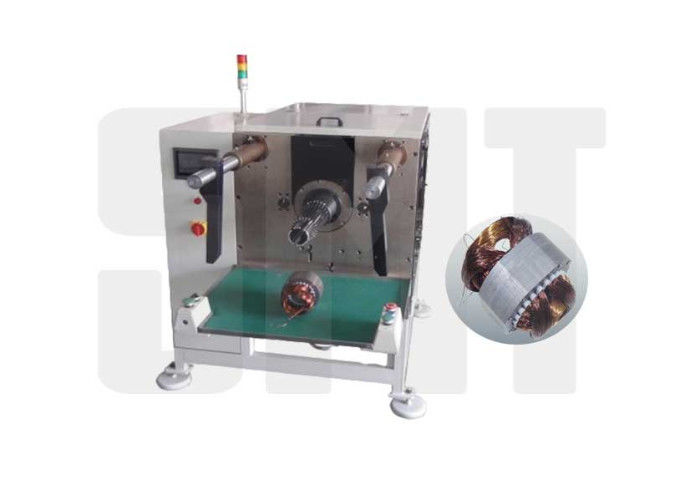

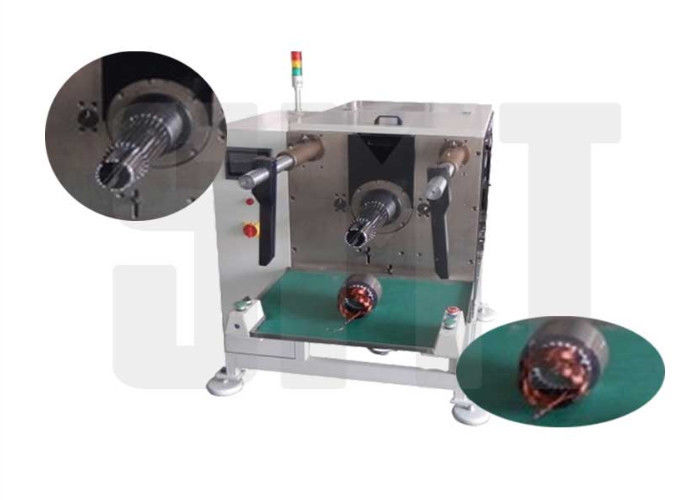

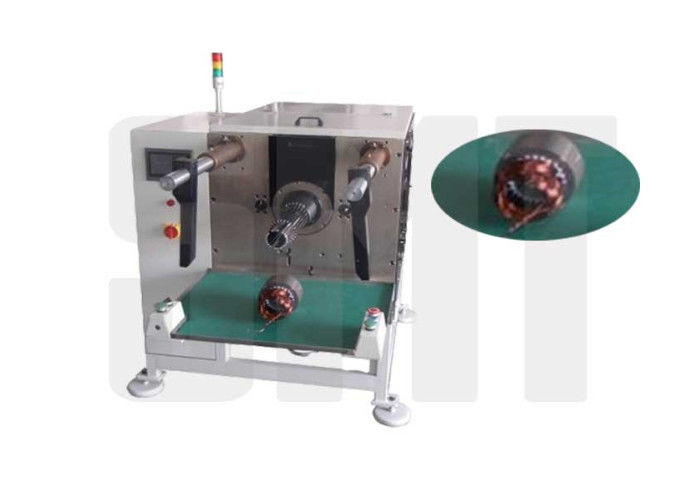

White Electric Induction Motor Stator Winding Inserting Machine With High Efficiency

White Electric Induction Motor Stator Winding Inserting Machine With High Efficiency

    • White Electric Induction Motor Stator Winding Inserting Machine With High Efficiency
    • White Electric Induction Motor Stator Winding Inserting Machine With High Efficiency
    • White Electric Induction Motor Stator Winding Inserting Machine With High Efficiency
    • White Electric Induction Motor Stator Winding Inserting Machine With High Efficiency
  • White Electric Induction Motor Stator Winding Inserting Machine With High Efficiency

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / BV / SGS
    Model Number: QX10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Price unit: USD; Price depends on configuration, design and customer special request, which can be negotiated later.
    Packaging Details: Plastic wrapping film, vacuum package and plywood cases. The package size depends on actual machine size.
    Delivery Time: 55-60 days after advance payment
    Supply Ability: 15 Set/Sets per 45 days
    Contact Now
    Detailed Product Description
    Name: White Electric Induction Motor Winding Insertion Machine With High Efficiency Model: SMT-QX10
    Stator O.D Max: Φ260mm Stator I.D Min: Φ110mm
    Applicative Wire: Copper / AL Colour: White







    White Electric Induction Motor Winding Insertion Machine with High Efficiency SMT-QX10





    Main Specifications



    1. Tooling changeover time is less than 10 minutes;

    2. It can insert the coil and wedge into stator slot automatically at a time;

    3. Paper feeding, coil and wedge inserting are driven by servo motors;

    4. Different parameters could be set in human-machine interface;

    5. The speed and feeding mode is acquirable according to different slot filling rates and different kinds of wire;

    6. Different sizes stator production can be done by changing tooling;

    7. Especially apply to micro induction motor such as air conditioner motor, washing machine motor, compression motor, fan motor, generator and pump motor.



    It's euqipped with modular tooling so it's very easy to change the tooling when change product model. The changeover time is less than 10 minutes.



    (1) Technical Parameters



    Model

    SMT-QX10

    Stator I.D

    Φ110~Φ210mm

    Stator O.D

    ≤Φ260mm

    Stack height

    ≤250mm

    Tooling travel

    ≤90mmn

    Compatible wire

    Cu / AL

    Slot number range

    24~48 slot

    Power supply

    380V/50/60Hz 6.5Kw

    Weight

    ≈1150Kg

    Dimension

    (L)2380×(W)1280×(H)1700mm



    (2) Brief Instruction of Machine



    Machine "White Electric Induction Motor Winding Insertion Machine with High Efficiency" is used for inserting electric coils and wedge insulation to stator slots automatically at one time. After finish coils winding in winding machine, the coils will be in transfer cup orderly. Operators just put the transfer cup with coils into the inserting tooling and start the inserting machine, which will form, cut and insert wedge paper together with coils automatically.

    Operators need to stand when operating.







    (4) Services



    We focus on developing and producing machines for different induction motors production, such as Winding machine, Coil Inserting Machine, etc.

    Design and manufacturing are standard except customer has special request. For example, shape design, allocation and colour,etc. can be specilized. Besides, we can help to arrange the layout of machines in customer site when necessary.

    Our engineers will provide customers with professional technical support. Within one year warranty period, some support and parts need to be replaced will be for free.

    Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.

    We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.



    (5) Production Line Service



    With good service, professional team and reliable quality, SMT provide customer with different kinds of equipments for various motors production. It can be one set machine or the whole prodcution line from winding process to final forming process. So especially for customer who wants the whole production line, we can provide manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.
