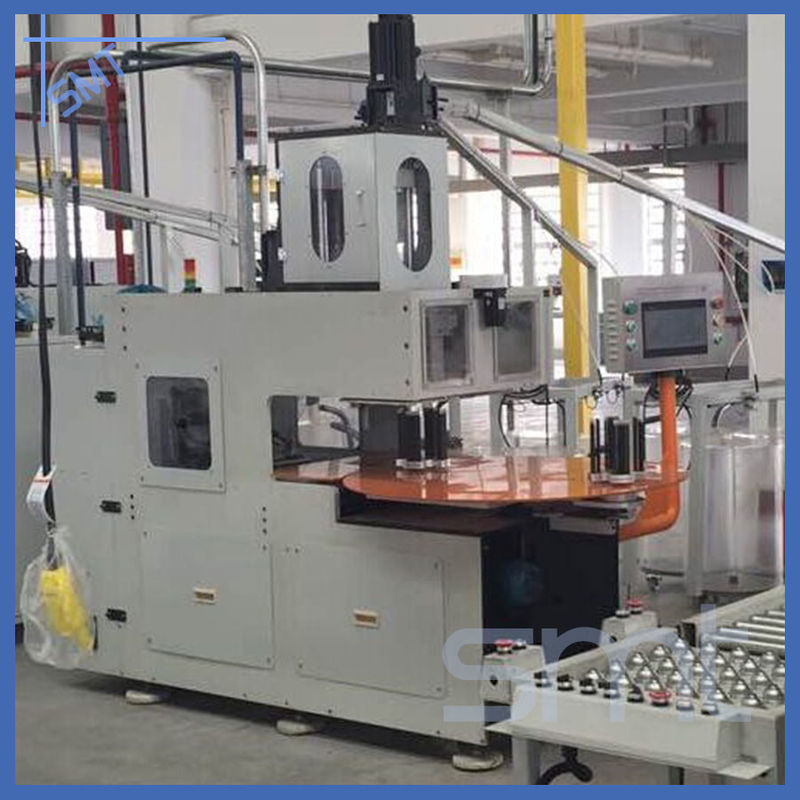

Automatic Stator Coil Copper Wire Making Machine With Mitsubishi Servo Motor

Automatic Stator Coil Copper Wire Making Machine With Mitsubishi Servo Motor

    • Automatic Stator Coil Copper Wire Making Machine With Mitsubishi Servo Motor
    • Automatic Stator Coil Copper Wire Making Machine With Mitsubishi Servo Motor
  • Automatic Stator Coil Copper Wire Making Machine With Mitsubishi Servo Motor

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO9001/SGS/CE
    Model Number: SMT-LR100 / LR200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Wooden Case Suitable for Sea Transportation.
    Delivery Time: 30 - 53 days for 1set
    Payment Terms: T/T
    Supply Ability: 2pcs/ 56 - 79 days
    Contact Now
    Detailed Product Description
    Name: Automatic Stator Coil Copper Wire Making Machine Transfer Number: 2-6pcs
    Power Supply: 380v/50/60Hz 7Kw Winding Head: 1-2 Pcs
    Max Stack Height: ≤70mm Wire Diameter: Dia 0.1-1.0mm

    Automatic Stator Coil Copper Wire Making Machine / Automatic Vertical Motor Wire Coil Winding Machine



    Servo motor: Mitsubishi

    Control system: Yitu Taiwan

    Touchscreen: Tongtai

    Sensor: Autonics

    Switch and Button: Schneider

    Other electric parts: Delixi /Schneider



    Automatic Stator Coil Copper Wire Making Machine is a kind of single-head and double-station automatic winding machine; automatic put the coil into transfer former orderly; especially suitable for high slot filling rate, small notch stator; winding mode such as automatic skip, automatic cutting and automatic indexing can be finished at a time successively; parameter could be set in human-machine interface, winding tension is adjustable;obtain continuous/discontinuous winding way and meets the 2 poles, 4 poles and 6 poles coils winding,



    (1) Main Technical Data




    Model
    SMT-LR100 SMT-LR150I SMT-LR150 II SMT_LR200 LR100 LR200
    Winding Head 1 1 1 1 2 2
    Wire Diameter(mm) 0.3~1.0 0.3~1.0 0.3~1.2 0.3~1.2 0.3~1.2 0.2~1.0 0.2~1.0
    Unload Speed ≤2500r/min ≤2500r/min ≤2500r/min ≤2000r/min 3000 3000
    Stack Height ≤80mm ≤120mm ≤150mm ≤230mm ≤70mm ≤70mm
    Winding Precision + 0 + 0 + 0 + 0 + 0 + 0
    Power Supply 380v/50/60HZ 8Kw 8Kw 9Kw 7Kw 7Kw
    Air Pressure ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa ≥0.6pa ≥0.6pa
    Weight ≈1350Kg ≈1600Kg ≈1600Kg ≈2200Kg ≈1950Kg ≈2300Kg
    Dimension
    (L×W×Hcm)
    180×110×200 180×120×220 180×130×230 220×180×250 180×130×205 135×100×180



    (2) Application


    This machine is suitable for 2 poles, 4 poles and 6poles coils winding.

    (3) Machine main function and characteristic

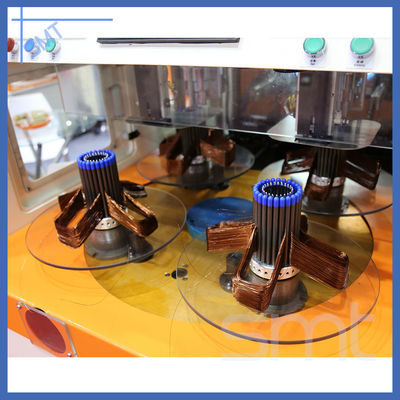

    Winding tooling: each machine has one set winding tooling and three vertical winding forms.
    The whole set of tooling can be changed, and it takes about 15min.
    The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
    Allow three wires winding simultaneously.
    Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
    The working rotation speed can be set . Machine has no distinct vibration and noise.
    Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
    PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
    X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
    Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.

    Automatic Stator Coil Copper Wire Making Machine With Mitsubishi Servo Motor

    (4) OEM/ODM Profile


    Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.



    (5) Production Line Profile



    With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
