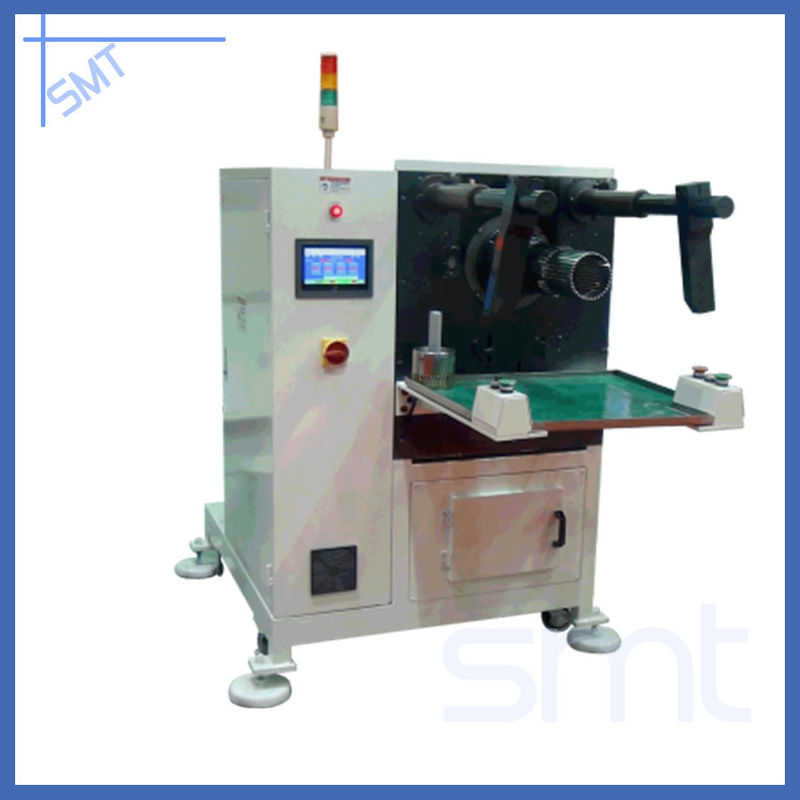

Horizontal Motor Stator Winding Inserting Machine 380V 50Hz / 60Hz

Horizontal Motor Stator Winding Inserting Machine 380V 50Hz / 60Hz

    • Horizontal Motor Stator Winding Inserting Machine 380V 50Hz / 60Hz
    • Horizontal Motor Stator Winding Inserting Machine 380V 50Hz / 60Hz
  • Horizontal Motor Stator Winding Inserting Machine 380V 50Hz / 60Hz

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / SGS Audit
    Model Number: SMT-QX10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Plywood Box With Sealing.
    Delivery Time: 43-69 days
    Payment Terms: T/T, L/C
    Supply Ability: 1pcs / 42-59 days
    Contact Now
    Detailed Product Description
    Name: Horizontal Type Washing Machine Motor Stator Coil Inserting Machine Model: SMT-QX10
    Stator I.D.: 110-210mm Stator O.D.: ≤260mm
    Dimension: (L)2370×(W)1260×(H)1710mm Weight: 1160kg
    Core Length: ≤250mm Slot Number Range: 24-48 Slots
    Automatic Grade: Semiautomatic Demoulding: Pull Core

    Horizontal Type Washing Machine Motor Stator Coil Inserting Machine



    Information needed for stator winding inserting machine inquiry
    It will be better if customer could send us detailed drawing including below information.
    1. Stator lamination drawing
    2. Stator stack drawing
    3. Wire connection drawing
    4. Stator application
    5 Required productivity
    6 Other technical requirement



    (1) Main Technical Features



    Model SMT-QX10
    Stator I.D 110-210mm
    Stator O.D ≤260mm
    Core Length ≤250mm
    Tooling stroke ≤90mm
    Compatible wire CU/AL
    Slot number range 24-48 slots
    Power supply 380V/50/60Hz 6.5Kw
    Weight 1160kg
    Dimension (L)2370×(W)1260×(H)1710mm



    (2) Application



    The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

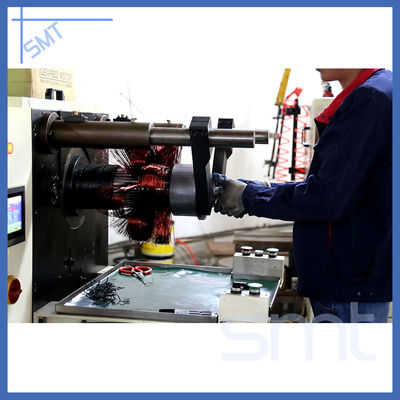

    Horizontal Motor Stator Winding Inserting Machine 380V 50Hz / 60Hz
    (3) Our Service



    Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

    We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.



    (4) OEM/ODM



    Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
    Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
    Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
    Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



    (5) Production Line Profile



    With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.



    (6) About Us



    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
