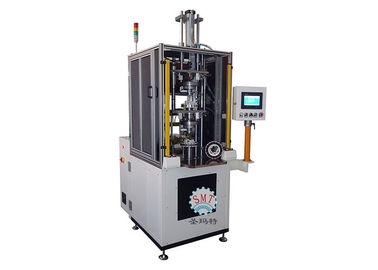

2 Spindles Needle Outer Slot Electric Motor Winding Machine 750x 21180 X 2150mm

2 Spindles Needle Outer Slot Electric Motor Winding Machine 750x 21180 X 2150mm

2 Spindles Needle Outer Slot Electric Motor Winding Machine 750x 21180 X 2150mm

Product Details:

Place of Origin: China
Brand Name: SMT
Certification: ISO9001/SGS/CE
Model Number: SMT-WR2007

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case Suitable for Sea Transportation.
Delivery Time: 30 - 43 days for 1set
Payment Terms: T/T, L/C,
Supply Ability: 2pcs/ 56 - 79 days
Contact Now
Detailed Product Description
Name: 2 Spindles Needle Outer Slot Motor Winding Machine Transfer Number: 2-6pcs
Power Supply: 380v/50/60Hz 7Kw Winding Head: 1-2 Pcs
Max Stack Height: ≤70mm Mould Life: >1,000,000 Shots
Automatic Grade: Full-Automatic Wire Diameter: Dia 0.1-1.0mm

2 Spindles Needle Outer Slot Motor Winding Machine / Out - slot Winding Machine



1. Machine features:



This machine is an automatic 2 spindles motor winding machine
It is designed for outer slot motor winding
servo motor transmission system, accuracy position control.
Keyence PLC Controller.
θ axle runs with 1Kw servo motor moving quickly and precision.
Quickly change tooling design
Equip with quality tensioner controls winding quality.
High level language instruction, with HMI setting friendly.
Password feature to prevent program from modified by non-related person.
Simple structure, easy control, less failure, easy maintenance



2. Application



This machine is suitable for 2 poles. 4 poles, 6 poles coils winding.



3. Operator step



1.Power on the machine

2.Thread wire this this motor

3. Set the winding parameter in the touch screen

4. Press the "start" button

5. Machine will do winding process automatically

6.After finishing the winding, machine will stop

7.Take out the wire from the tooling.



4. Information needed for Automatic Stator Coil Winding Machine inquiry


It will be better if customer could send us detailed drawing including below information.
1. Stator drawing
2. Stator winding drawing
3. Winding distribution drawing
4. Other technical requirement
If possible, it will be better if customer can send us samples.



This machine has 8 winding station, all the four heads will do winding together. Stator coil winding machine



5. Main Technical Data



Item Data
Model WR2007
Stator OD ≤200mm
Stator Tack Height  120mm
Load Speed  300r/min
Air Pressure 0.4 -0- 0.6 MPa
Power supply 11kw
Machine weight About 1800kg
Machine dimension (LxWxH) 750x 21180 x 2150mm


6. Machine main function and characteristic




Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.



7. OEM/ODM Profile


Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.



 8. Production Line Profile



With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.



9.  About Our Factory

Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
