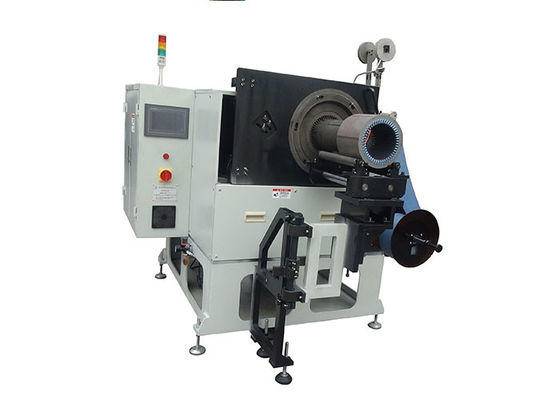

SMT-CW300 Stator Horizontal Motor Production Machine

Good quality Slot Insulation Machine for sales
Good quality Slot Insulation Machine for sales
It’s so happy that can work with SMT team, they provide very useful suggestion. Also, the machine is great. Thanks very much!

—— Edward

We are fan factory in Turkey, there is more than 15,000 motors we need for one month. Thanks for SMT team provide the full line production system.

—— Aakarshan

I'm Online Chat Now

SMT-CW300 Stator Horizontal Motor Production Machine

China SMT-CW300 Stator Horizontal Motor Production Machine supplier

Large Image :  SMT-CW300 Stator Horizontal Motor Production Machine

Product Details:

Place of Origin: China
Brand Name: SMT
Certification: ISO/SGS Audit
Model Number: SMT-CW300

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 48 - 80 days
Payment Terms: T/T, L/C
Supply Ability: 1pcs / 48 - 80 days
Detailed Product Description
Name: Motor Production Machine Slot Insulation Inserting Machine Core Length: 80-300mm
Stator I.D.: 100-200mm Stator O.D.: ≤300mm
Height Of Edge Folded: 3-10mm Power Supply: 380V/50/60Hz 0.75Kw

Stator Horizontal Slot Insulation Inserting Machine Motor Production Machine SMT-CW300





Winding inserting machine is controlled by industrial programmable PLC, the machine is used for winding and wedge automatically inserting. It adopts ACservo motor driving system, AC frequency conversion speed regulation system, pneumatic system. It can achieve wedge length setting, feeding, cutting, forming and inserted into stator together with coil automatically. Coil inserting speed can be set at different section. Wedge feeding mode can be set according to different motor.



(1) Main Technical Data



Model CW300
Core length 80-300mm
Stator I.D. 100-200mm
Stator O.D. ≤300mm
Height of Edge Folded 3-10mm
Insulation paper's thickness ≤0.35mm
Efficiency 1.2s/s
Power Supply 380V/50/60Hz 0.75Kw
MOQ 1 set of Slot Paper Insertion Machine
Machine dimension (L)1100*(W)900*(H)1500mm



(2) Application



1. Suitable exclusively for large and medium-sized motors,inserting insulation paper automatically from bottom of stator slot;

2. Automatic paper feeding,edge folding and forming;

3. Characterized by low noise, fast speed, excellent forming,etc;

4. Slot number change is controlled by electric;

5. Interval slot inserting and skip slot inserting could be at option;

6. It is convenient and easy for different slot number stator production and changing tooling;

7. Especially suitable for generator,deep pump motor, three phase machine,etc.


(3) Machine Main Characteristic



It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.





(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5) Production Line Profile



With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

SMT-CW300 Stator Horizontal Motor Production Machine
