Electric Motor Stator Slot Insulation Paper Inserting Machine 3 - 7mm Cuff Height

Electric Motor Stator Slot Insulation Paper Inserting Machine 3 - 7mm Cuff Height

  • High Light

    electric motor winding equipment

    ,

    slot insulation machine

    ,

    7mm Cuff Height Paper Inserting Machine

  • Name
    Specialized Slot Insulation Machine For Medium-size Induction Motors
  • Model
    SMT-SC160
  • Stack Height
    ≤160mm
  • Cuff Height
    3~7mm
  • TAKT Time
    ≈0.8s/s
  • Air Pressure
    ≥0.5MP
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / BV / SGS
  • Model Number
    SC160
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Normally, slot Insulation Machine is packaged with plywood cases.
  • Delivery Time
    35-40 days after placing order
  • Supply Ability
    20 Set/Sets per Month

Electric Motor Stator Slot Insulation Paper Inserting Machine 3 - 7mm Cuff Height

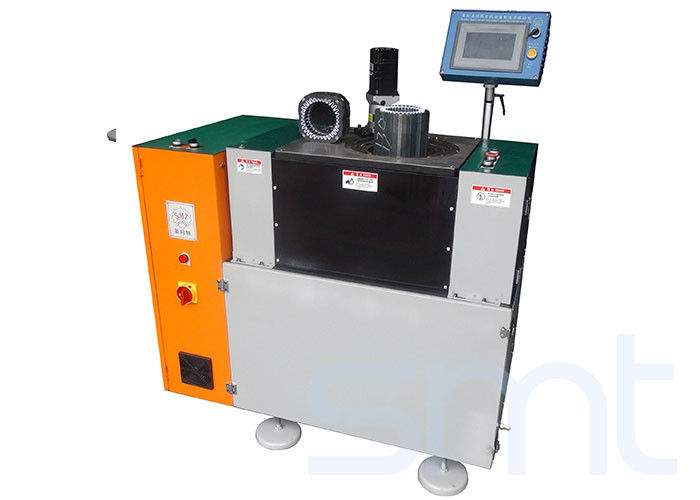

Specialized Slot Insulation Machine for Medium-size Induction Motors SMT-SC160



Automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mode is adjustable to different sizes of slot automatically



(1) Technical Parameters



Model SMT-SC160
Stack height ≤160mm
Stator I.D Φ70~Φ150mm
Stator O.D ≤Φ200mm
Cuff height 3~7mm
Insulation paper’s thickness ≤0.35mm
TAKT time ≈0.8s/s
Power supply 380V/50/60Hz 1.1Kw
Air Pressure ≥0.5MPa
Weight ≈550Kg
Dimension(L×W×H mm) 1250×1100×1500mm



(2) Brief Instruction of Machine



Machine "Specialized Slot Insulation Machine for Medium-size Induction Motors" is used for inserting insulaton paper to stator slots automatically at one time, especially for stators with different slot shapes.

The tooling design is according to stator slots shape and dimension. Different kinds of tooling is available for stator prodction.



(3) Main Specifications



1. A special design for stators with different slot shapes and sizes, like washing machine motor, fan motor, compressor motor, etc.;

2. It can finish insulation paper insertion with one roll insulation paper at one time;

3. Automatic adjustment of paper length and width, paper cutting, cuff forming and inserting when inserting paper to different-size and different-shape slot;

4. Paper feeding and cutting are finished by servo motors;

5. Interpersonal interface sets required specific parameters;

6. Forming mold is adjustable to different slot sizes automatically;

7. Characterized by simple operation, low noise, fast speed and high automation.

8. Indexing can be configured with servo motors or stepper motors.



(4) Services



We're dedicated to R&D and manufacturing machines for different induction motors production, such as Coil Winding machine, Coil Inserting Machine, etc.

Design and manufacturing are standard except customer has special request. For example, shape design, allocation and colour,etc. can be specilized. Besides, we can help to arrange the layout of machines in customer site when necessary.

Our engineers will provide customers with professional technical support. Within one year warranty period, some support and parts need to be replaced will be without charge.

Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.



(5) Application



Our machines are mainly applied in various induction motors such as washing machine motor, air conditioner motor, general purpose pump motor, reducer motor, industrial three-phase motor, fan motor and new energy motor, etc.
