Big Frame Size Electric Automatic Stator Winding Machine / Winder SMT - DR1200

Big Frame Size Electric Automatic Stator Winding Machine / Winder SMT - DR1200

    • Big Frame Size Electric Automatic Stator Winding Machine / Winder SMT - DR1200
    • Big Frame Size Electric Automatic Stator Winding Machine / Winder SMT - DR1200
  • Big Frame Size Electric Automatic Stator Winding Machine / Winder SMT - DR1200

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO9001/SGS
    Model Number: SMT-DR1200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Wooden Box Packaging Fit for Your Machine.
    Delivery Time: 31 - 55 days
    Payment Terms: T/T, L/C, Western Union, D/A
    Supply Ability: 1pcs / 30 - 55 days
    Contact Now
    Detailed Product Description
    Name: Big Frame Size Electric Motor Stator Coil Jump Winding Machine/Winder Color: White
    Swing Dia: ≤900mm Flier: 200mm
    Transfer Number: 2-6pcs Power Supply: 220v/50/60Hz 3Kw
    Weight: 1000kg Dimension: 2300x 2200 X 2000mm
    Winding Head: 8pcs Air Pressure: 0.4-0.6MPa

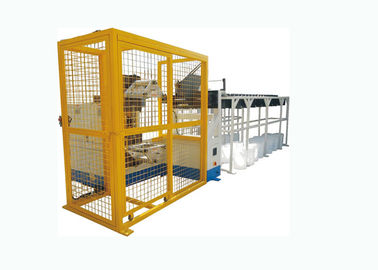

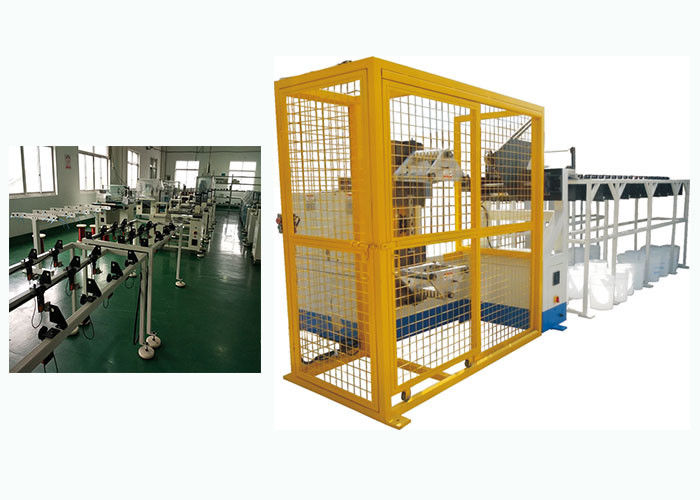

    Big Frame Size Electric Automatic Stator Winding Machine / Winder SMT - DR1200





    From inception, our company has been adhering to the "quality first, customer first" principle. Our company has advanced production equipment, experienced engineering device developers, strong professional production team and strict quality control system. Main products: Full-automatic winding machine, manufacturing and sales of induction motor stator machinery and other electronic equipment. We also can press the customer request to do product design. Quality assurance, reasonable prices, imposed on all products sold and after-sale service. We believe that through our efforts and pursuit, certainly achieve mutually beneficial win-win situation with our customers!



    (1) Main Technical Date



    Item Data
    Model DR1200
    Swing Diameter ≤900mm
    Wire diameter 0.4 - 1.5mm
    Paralle Wire No. ≤ 40pieces
    Air Pressure 0.4 -0- 0.6 MPa
    Power supply 220V/ 50/60Hz, 3kw
    Machine weight About 1100kg
    Machine dimension (LxWxH) 2300x 2200 x 2000mm



    (2) Application:
    This machine is suitable for 2 poles, 4 poles coils winding.

    (3) Machine main function and characteristic


    Winding tooling: each machine has one set winding tooling and three vertical winding forms.
    The whole set of tooling can be changed, and it takes about 15min.
    The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
    Allow three wires winding simultaneously.
    Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
    The working rotation speed can be set . Machine has no distinct vibration and noise.
    Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
    PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
    X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
    Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.



    (4) OEM/ODM Profile


    Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.



    (5) Production Line Profile



    With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.



    (6) About Our Factory



    Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
