    Detailed Product Description
    Name: 2 Winding Heads Automatic Washing Machine Electrical Motor Winding Machine Model: SMT-SLR70
    Winding Head: Equipped With Double Heads Wire Dia. Min: Φ0.2mm
    Wire Material: Copper / Aluminum Wires N.W: ≈1950Kg

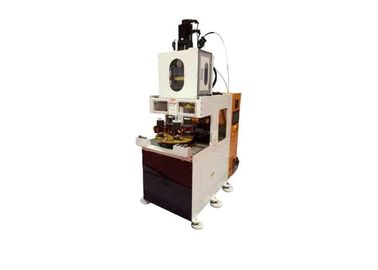

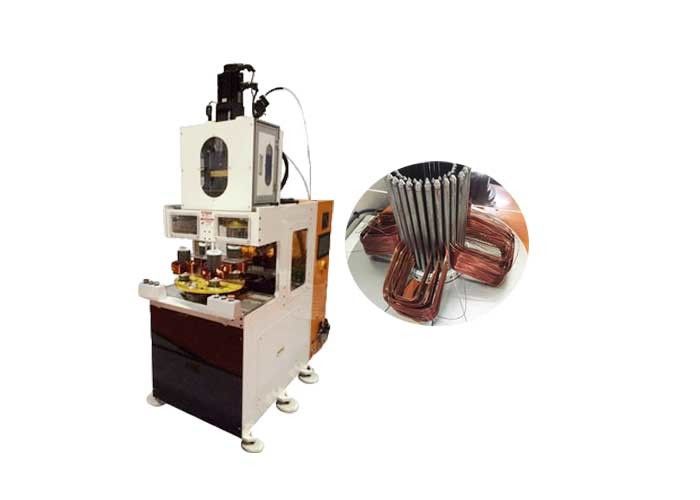

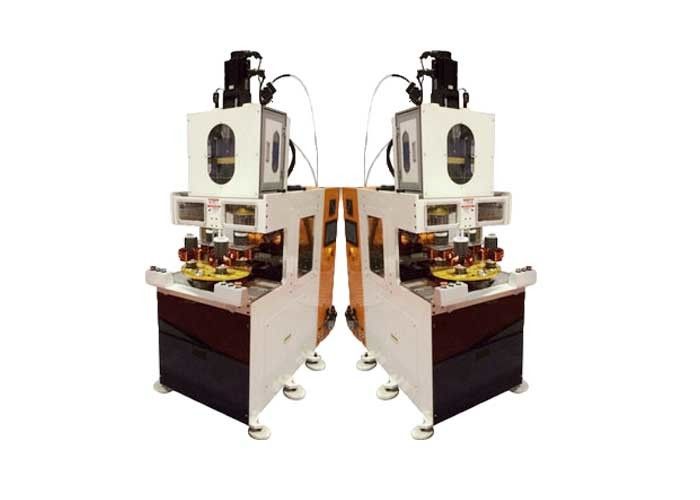

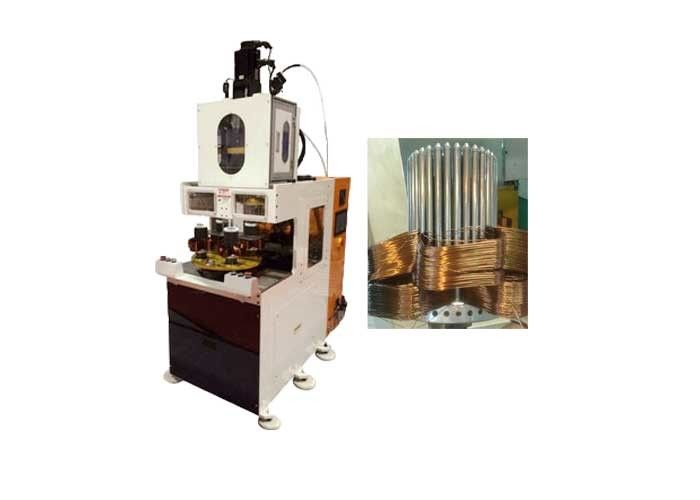

    2 Winding Heads Automatic Washing Machine Electrical Motor Winding Machine SMT-SLR70

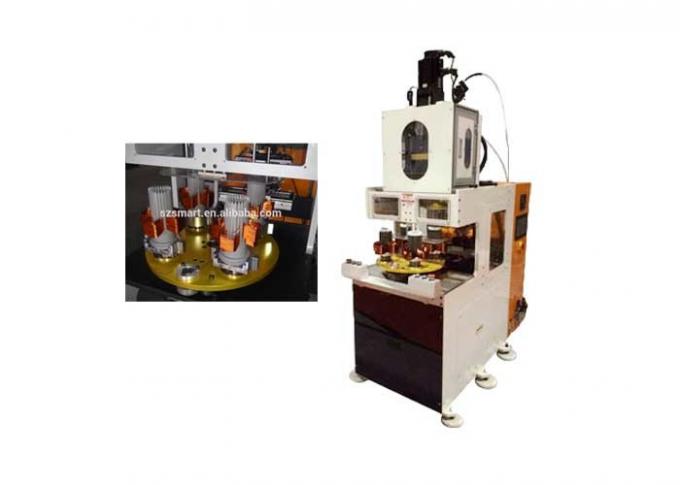

    Equipped with double winding heads and four working stations with turntable. It can wind coils directly and orderly into transfer cups. And the motions are driven by six servo motors. It's eaiser for operators to insert the coils of stators with high slot fill factor and small slot opening width. So it can save labor effecitvely.

    (1) Technical Parameters

    Model SMT-SLR70
    Winding head 2pc
    Wire diameter Φ0.2mm ~ Φ1.0mm
    Winding Speed ≤3000r/min
    Max stack height ≤70mm
    Winding precision ±0 turn
    Power supply 380V/50/60Hz 7Kw
    Air pressure ≥0.6MPa
    Weight ≈1950Kg
    Dimension (L)1800×(W)1300×(H)2050mm


    (2) Brief Instruction of Machine

    Machine "2 Winding Heads Automatic Washing Machine Electrical Motor Winding Machine" is used for winding copper / aluminum wires to several coils automatically and putting them into transfer cup orderly.
    It adopts six servo motors to control the motion, like high-speed mold dipping, turntable rotating and transfer cup indexing and so on. It can achieve higher qualification rate.
    Operators need to stand when operating.

    (3) Main Specifications

    1. A kind of double-head and four-station automatic winding machine;
    2. It can wind two phases at one time, which can wind single or multiple wires.
    3. Automatic put the coil into transfer former orderly;
    4. Six spindles are controlled by servo motors: the main spindle, high-speed mold dipping, hooking and cutting wire, turntable rotation and transfer cup index are all controlled by servo motors;
    5. Especially suitable for stators with high slot fill factor and small slot opening;
    6. Winding mode such as automatic skip, automatic cutting and automatic indexing can be finished successively at one time;
    7. Parameters can be set in human-machine interface, winding tension is adjustable;
    8. Obtain continuous or discontinuous winding way and meets the 2 poles, 4 poles and 6 poles coils winding;
    9. It saves labor and has high efficiency.
