Coil Forming Machine Big Dimension Heavy Weight Stator SMT - ZJ300

Coil Forming Machine Big Dimension Heavy Weight Stator SMT - ZJ300

    • Coil Forming Machine Big Dimension Heavy Weight Stator SMT - ZJ300
    • Coil Forming Machine Big Dimension Heavy Weight Stator SMT - ZJ300
  • Coil Forming Machine Big Dimension Heavy Weight Stator SMT - ZJ300

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / SGS Audit
    Model Number: SMT - ZJ300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Plywood Box With a Plastic Bag. 1 Ply-Wooden Case
    Delivery Time: 52 - 77 days
    Payment Terms: T/T , L/C
    Supply Ability: 1pcs / 52 - 77 days
    Contact Now
    Detailed Product Description

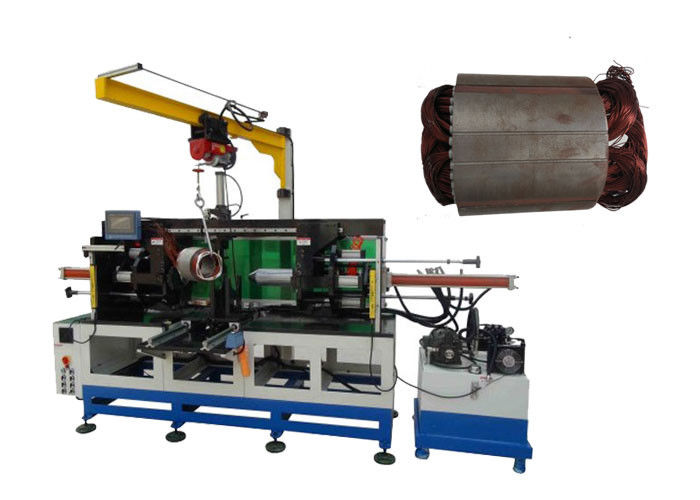

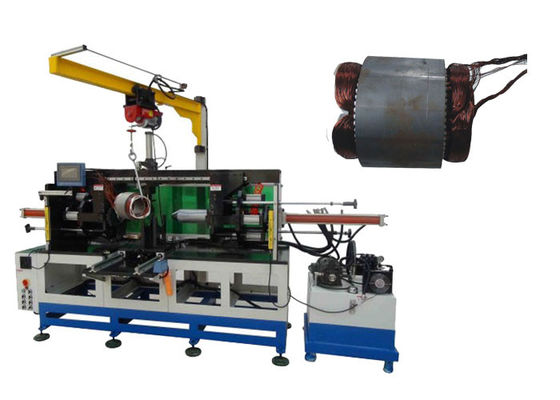

    Name: Big Dimension Heavy Weight Stator Coils Forming And Shaping Machine Model: ZJ300
    Stator I.D.: 110-210mm Stator O.D.: ≤300mm
    Machine Dimension (LxWxH): L3726x W1251 X H2111mm Displacement Of Cylinder: 40L
    After-sales Service: Overseas Service Available Color: White
    Warranty: 12 Months Working Station: Single Working Station
    Control Method: Hydraulic Cylinder

    Coil Forming Machine Big Dimension Heavy Weight Stator SMT - ZJ300



    Do not operate machine during its maintenance, stop running machine and cut off the power.
    That other than specified personnel do not operate the machine, and two people operate the machine at the same time is forbidden.
    It is prohibited that operate machine and touch the electrical parts by wet hands, probably may cause electric shock.
    The operator can not leave away when the machine is running, should keep his eyes on that if any abnormality (abnormal noise, unusual smell, over heat, vibration) of each parts coming up. Stop and check the machine immediately if any of above mentioned takes place, and solve it in time.
    It is prohibited that to use the machine beyond its capacity and load.
    After stop using the machine, please do the check an clean up, please do not use the steam or water or corrosive liquid to clean the machine.
    The height of the hydraulic oil in the oil tank should keep in same level with the mark line; the hydraulic oil is no J-HM46# antiwar hydraulic oil.


    (1) Main Technical Date


    Model ZJ300
    Stack height 70- 250mm
    Stator I.D 110-210mm
    Stator O.D ≤300mm
    Displacement of cylinder 40L
    Power supply 380V/50/60Hz 4.2Kw
    Machine weight About 2300kg
    Machine dimension (LxWxH) L3726x W1251 x H2111mm


    (2) Application

    The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

    Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

    We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.

    (3) Machine Main Characteristic


    This machine adopts whole hydraulic system and PCL program.

    This machine can adjust the forming stack length by changing washer.

    Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

    Production capacity ≤13s/set (exclude loading/unloading time)

    Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

    This machine adopts safety grating protection system. Operator need to stand when operating.

    Machine adopts two hands simultaneously start button to ensure safety.

    Efficiency stator coil forming machine,stator coil forming machine,coil forming machine work,coil forming machine used


    (4) OEM/ODM


    Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
    Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
    Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
    Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.


    (5) Production Line Profile


    With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

    Coil Forming Machine Big Dimension Heavy Weight Stator SMT - ZJ300

    (6) About Us


    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
