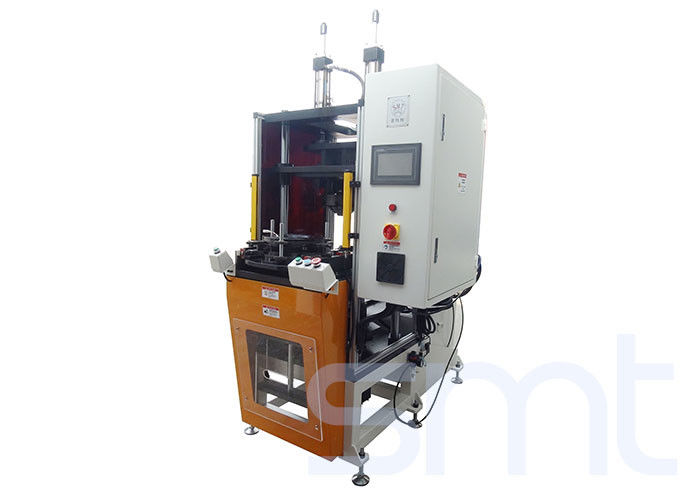

Name: Stator Coil Shaping Machine Middle Forming Machine Model: ZZ190
Stator I.D.: 50-100mm Stator O.D.: ≤160mm
Height Of Edge Folded: 3-10mm Power Supply: 380V/50/60Hz 3Kw

Induction Motor Stator Coil Final Forming Machine SMT - ZZ160



The middle forming machine adopts hydraulic system background,industrial programmable PLC control,mould design USES up,outsourcing,the principle of plastic forming scale end of,effective guarantee of the stator tie in front of the plastic size.



(1) Main Technical Features



Model ZZ190
Stack height 16-100mm
Stator I.D 50-100mm
Stator O.D ≤190mm
Displacement of cylinder 20F
Input 380V/50/60Hz
Power supply 3.75kw
Machine weight About 700kg
Machine dimension (LxWxH) 650x 900 x 2300mm



(2) Application



The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.


(3) Machine Main Characteristic



This machine adopts whole hydraulic system and PCL program.

This machine can adjust the forming stack length by changing washer.

Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

Production capacity ≤13s/set (exclude loading/unloading time)

Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

This machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.

Efficiency stator coil forming machine,stator coil forming machine,coil forming machine work,coil forming machine used



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5) Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
