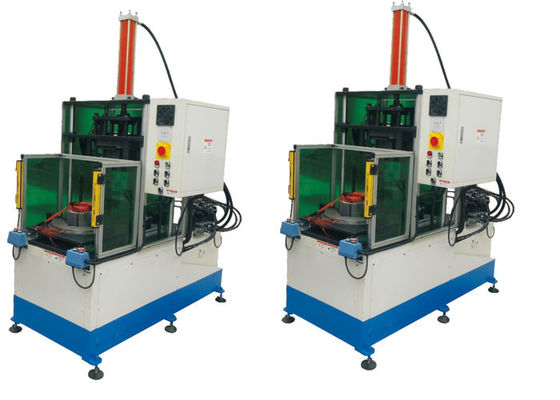

Automatic Single Phase Pre Forming Machine SMT - ZZ190 Model

Automatic Single Phase Pre Forming Machine SMT - ZZ190 Model

    • Automatic Single Phase Pre Forming Machine SMT - ZZ190 Model
    • Automatic Single Phase Pre Forming Machine SMT - ZZ190 Model
  • Automatic Single Phase Pre Forming Machine SMT - ZZ190 Model

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / SGS Audit
    Model Number: SMT - ZZ190

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Plywood Box
    Delivery Time: 7-11 weeks
    Payment Terms: T/T , L/C
    Supply Ability: 1pcs / 7-11 weeks
    Contact Now
    Detailed Product Description
    Name: Automatic Single Phase Induction Coil Shaping Machine / Pre Forming Machine Model: ZJ190
    Stator I.D.: 50-131mm Stator O.D.: ≤191mm
    After-sales Service Provided: Engineers Available To Service Machine After-Sales Service: Overseas Service Available
    Drive Method: Huralic Oil Mould Life: >1,000,000 Shots
    Specification: ISO9001 Function: Lubrication

    Automatic Single Phase Pre Forming Machine SMT - ZZ190 Model





    Forming machine operation step
    1. Power on the machine
    2. Put the stator to the tooling
    3. Press " auto" button by two hands
    4. Machine will automatic do the forming
    5. Unload the stator by manual

    Competitive advantages:
    Variety of application, easy operation.
    We have Overseas Service Center.
    Machine is controlled by PLC. All the parameter can be set in the touch screen.
    It is suitable for stators with different model number and dimension.
    The operation and tooling change process is easy.
    We could customize machine for our customer as per their requirement.
    We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.



    (1) Main Technical Date



    Model ZZ190
    Stator I.D. 50-131mm
    Stator O.D. ≤191mm
    Stack Height 20-160mm
    Displacement of cylinder 20F
    MOQ 1 Coil Forming Machine
    Power Supply 380V/50/60Hz 3Kw
    Weight 1501kgs
    Machine dimension (L)1953*(W)1102*(H)2510mm



    (2) Application

    The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

    Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

    We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.


    (3) Machine Main Characteristic



    This machine adopts whole hydraulic system and PCL program.

    This machine can adjust the forming stack length by changing washer.

    Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

    Production capacity ≤13s/set (exclude loading/unloading time)

    Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

    This machine adopts safety grating protection system. Operator need to stand when operating.

    Machine adopts two hands simultaneously start button to ensure safety.

    Efficiency stator coil forming machine,stator coil forming machine,coil forming machine work,coil forming machine used



    (4) OEM/ODM



    Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
    Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
    Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
    Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



    (5) Production Line Profile



    With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

    Automatic Single Phase Pre Forming Machine SMT - ZZ190 Model

    (6) About Us



    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
