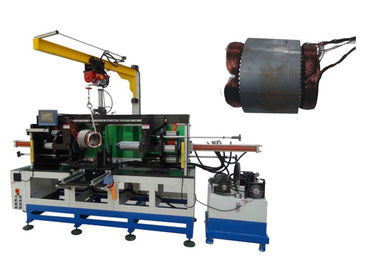

Stator End Turn Pre - Forming Machine for Motor Production SMT - ZJ300

Stator End Turn Pre - Forming Machine for Motor Production SMT - ZJ300

    • Stator End Turn Pre - Forming Machine for Motor Production SMT - ZJ300
    • Stator End Turn Pre - Forming Machine for Motor Production SMT - ZJ300
  • Stator End Turn Pre - Forming Machine for Motor Production SMT - ZJ300

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / SGS Audit
    Model Number: SMT - ZJ300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Plywood Box With a Plastic Bag.
    Delivery Time: 40 - 79 days
    Payment Terms: T/T , L/C
    Supply Ability: 1pcs / 41 - 78 days
    Contact Now
    Detailed Product Description
    Name: Stator End Turn Pre - Forming Machine For Motor Production Model: ZJ300
    Machine Dimension (LxWxH): L3726x W1251 X H2111mm Displacement Of Cylinder: 40L
    After-sales Service: Overseas Service Available Automatic Grade: Full-Automatic
    Warranty: 12 Months Color: White
    Usage: Stator Production Line

    Stator End Turn Pre - Forming Machine for Motor Production SMT - ZJ300





    This high speed copper wire motor coil winding machines can wind and tie wires as you needed. Such as adjusting the length of the wire's head and tail. The copper wire motor coil winding machines can also support wires with magnet ring ,commodities suffix wire,and other special wires.

    We can even reform the copper wire motor coil winding machines for your special needs if you have large production of wires and cables.



    (1) Main Technical Date



    Model ZJ300
    Stack height 70- 250mm
    Stator I.D 110-210mm
    Stator O.D ≤300mm
    Displacement of cylinder 40L
    Power supply 380V/50/60Hz 4.2Kw
    Machine weight About 2300kg
    Machine dimension (LxWxH) L3726x W1251 x H2111mm



    (2) Application

    The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

    Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

    We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.


    (3) Machine Main Characteristic



    This machine adopts whole hydraulic system and PCL program.

    This machine can adjust the forming stack length by changing washer.

    Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

    Production capacity ≤13s/set (exclude loading/unloading time)

    Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

    This machine adopts safety grating protection system. Operator need to stand when operating.

    Machine adopts two hands simultaneously start button to ensure safety.

    Efficiency stator coil forming machine,stator coil forming machine,coil forming machine work,coil forming machine used



    (4) OEM/ODM



    Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
    Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
    Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
    Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



    (5) Production Line Profile



    With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

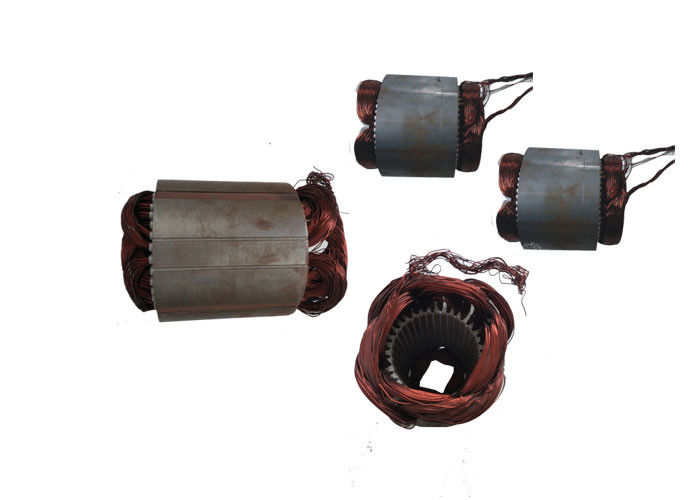

    Stator End Turn Pre - Forming Machine for Motor Production SMT - ZJ300

    (6) About Us



    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
