High Precision Coil Shaping And Forming Stator Winding Machine Electric Power

High Precision Coil Shaping And Forming Stator Winding Machine Electric Power

High Precision Coil Shaping And Forming Stator Winding Machine Electric Power

Product Details:

Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT-ZJ190

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 1 - 2 month
Payment Terms: T/T , L/C
Supply Ability: 1pcs / 1 - 3 months
Contact Now
Detailed Product Description

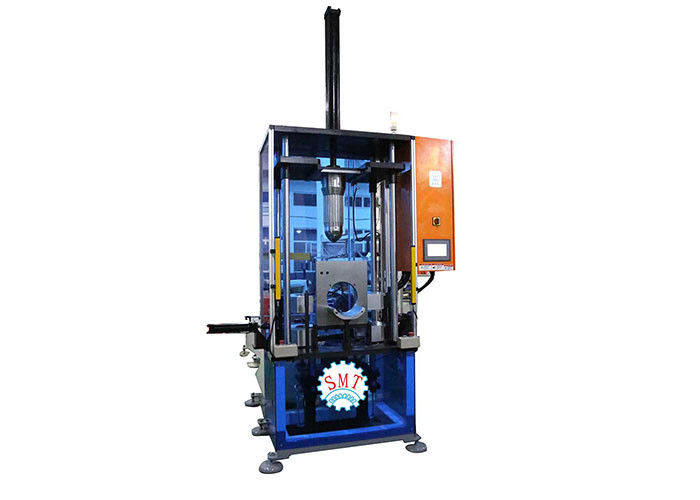

Name: Stator Coil Shaping Machine Middle Forming Machine Model: ZJ190
Stator I.D.: 50-100mm Stator O.D.: ≤160mm
Height Of Edge Folded: 3-10mm Power Supply: 380V/50/60Hz 3Kw
Function: Lubrication Grade: Full Automatic



Induction Motor Stator Coil Final Forming Machine SMT - ZJ190



Easy operation.
High efficiency production.
High precision.
Fast mould change.
Easy maintenance
Simple mechanism to ensure trouble-free & long-life operation.
Driven by hydraulic system and PLC.
Good quality and competitive price.
Provide various stator winding shaping solutions according to your production needs.



OEM or ODM are accepted



Stator Winding Middle Forming Machine is driven by hydraulic system; PLC programming;individual guard teeth in each slot settles fied wire and jump wire to ensure the reliability of electrical leakage distance; whole schematic design of inner expansion, outer wrapping and edge forming ensures appropriate winding outside dimension. Middle forming is done after winding inserting but before winding lacing.



(1) Main Technical Features



Model ZZ190
Stack height 16-100mm
Stator I.D 50-100mm
Stator O.D ≤190mm
Displacement of cylinder 20F
Input 380V/50/60Hz
Power supply 3.75kw
Machine weight About 700kg
Machine dimension (LxWxH) 650x 900 x 2300mm



(2) Application



The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.


(3) Machine Main Characteristic



This machine adopts whole hydraulic system and PCL program.

This machine can adjust the forming stack length by changing washer.

Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

Production capacity ≤13s/set (exclude loading/unloading time)

Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

This machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.

Efficiency stator coil forming machine,stator coil forming machine,coil forming machine work,coil forming machine used



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5) Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
