|Place of Origin:||China|
|Certification:||ISO / SGS Audit|
|Model Number:||SMT - BZ160|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Wooden case suitable for sea transportation With a Sealing Bag.|
|Delivery Time:||42 - 84 days|
|Payment Terms:||T/T , L/C|
|Supply Ability:||1pcs / 42 - 81 days|
|Name:||Double Sides Motor Stator Coil End Automatic Lacing Machine||Stator O.D.:||≤Φ160mm|
|Stack Height:||17~100mm||Power Supply:||380V/50/60Hz 3.5Kw|

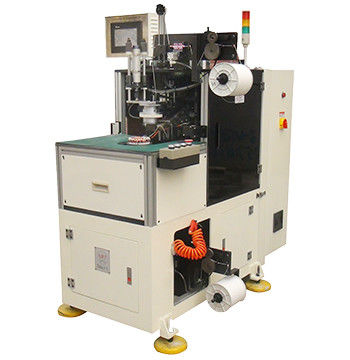

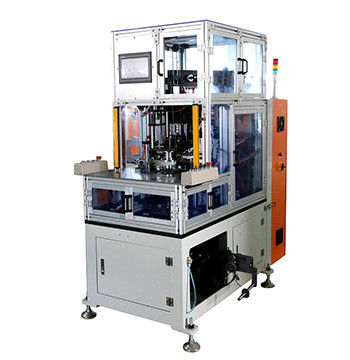

Coil End Automatic Lacing Machine Double Sides Motor Stator
This machine is consist of machine body, needle, nozzle rotating part, needle fore and back movement,nozzle swing part, needle up and down movement part, stator indexing part,thread feeding,thread cutting part.
(1) Main Technical Information
|Stator I.D||Φ25~ Φ100mm|
|Height of overhang||≤40mm|
|Lacing mode||Slot by slot/Interval slot/Fancy slot|
|Power supply||380V/50/60Hz 3.5Kw|
This machine adopts servo driven system, CNC control design and HIM program.
The indexing is driven by servo system. Different lacing mode could be set such as slot lacing, interval lacing, and fancy lacing.
Main spindle adopts servo control system. The rotation speed can be set.
Two needles driven by servo system lace upper and lower coil simultaneously.
Machine can automatically feed thread and cut thread. There is no need to tie a knot.
Tooling change is fast and convenient. Stator stack length range is 50-130mm.
Lacing tension can be set,
Production capacity ≤1s/slot.
Should be no copper wire snap and wire enamel broken.
Primary qualification rate ≥98.5%, after rework, the rate ≥99.5%
his machine adopts safety grating protection system. Operator need to stand when operating.
Machine adopts two hands simultaneously start button to ensure safety.
(3) Machine Main Characteristic
1. Adapting industrial PLC, human-computer interface and horizontal frame-structure design, the servo system machine accurately controls the lacing action.
2. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable.
3. This machine is suitable for the big stator with high winding over-hang.
4. The tooling is movable and convenient for stator fast loading and unloading, hence to reduce the labor strength effectively.
