|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Plywood Box with Sealing.|
|Delivery Time:||53 - 85 days|
|Payment Terms:||T/T, L/C|
|Supply Ability:||1pcs / 53 - 75 days|
|Name:||Stator Slot Insulation Inserting Machine Induction Motor Production Machine||Model:||SC80|
|Stator I.D.:||39-80mm||Stator O.D.:||≤180mm|
|Height Of Edge Folded:||3-10mm||Power Supply:||380V/50/60Hz 0.75Kw|
|Heating System:||Electric||Overseas After-Service:||Our Engineer Is Avaliable|

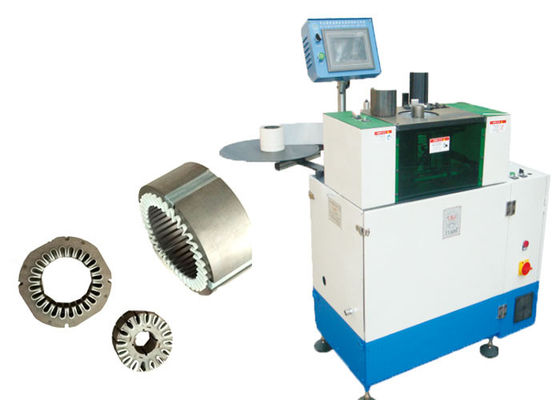

Stator Slot Insulation Inserting Machine Induction Motor Production Machine SMT - SC80
1. It is suitable exclusively for large and medium-size motors.
2. This machine is characterized by low noise, fast speed, excellent forming,
3. it is convenient and easy for different slot number stator production and changing tooling.
4. It is suitable for generator, deep pump motor, three phase machine, etc.
(1) Main Technical Data
|Stack Height of Stator||≤60mm|
|Width of Edge Folded||2.5-4mm|
|Power Supply||380V/50/60Hz 0.75Kw|
1. Suitable exclusively for large and medium-sized motors,inserting insulation paper automatically from bottom of stator slot;
2. Automatic paper feeding,edge folding and forming;
3. Characterized by low noise, fast speed, excellent forming,etc;
4. Slot number change is controlled by electric;
5. Interval slot inserting and skip slot inserting could be at option;
6. It is convenient and easy for different slot number stator production and changing tooling;
7. Especially suitable for generator,deep pump motor, three phase machine,etc.
(3) Machine Main Characteristic
It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.
Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.
(5) Production Line Profile
With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
(6) About Us
Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
