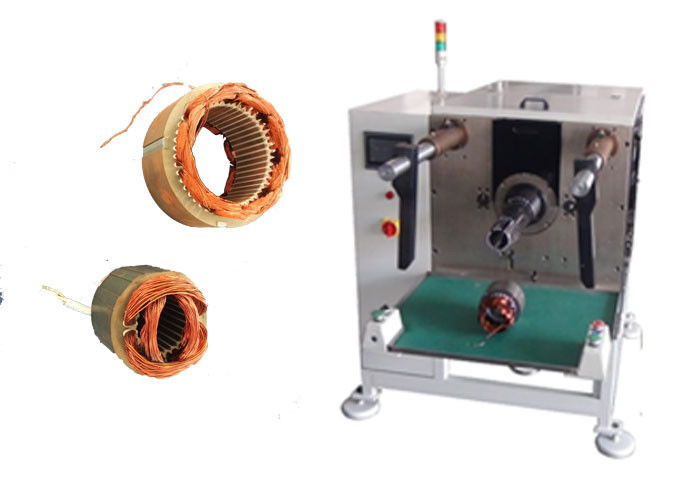

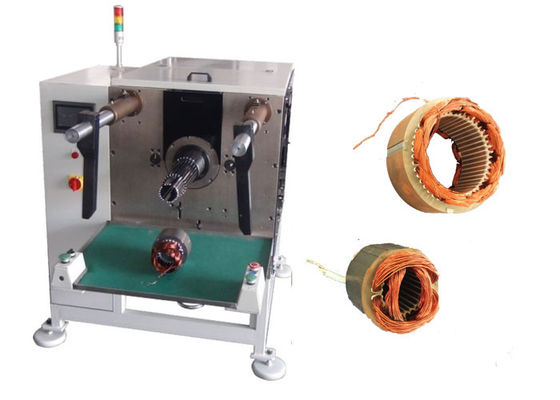

Automatic Servo Motor Stator Coil and Wedge Inserting Machine SMT - QX08

Automatic Servo Motor Stator Coil and Wedge Inserting Machine SMT - QX08

    • Automatic Servo Motor Stator Coil and Wedge Inserting Machine SMT - QX08
    • Automatic Servo Motor Stator Coil and Wedge Inserting Machine SMT - QX08
  • Automatic Servo Motor Stator Coil and Wedge Inserting Machine SMT - QX08

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / SGS Audit
    Model Number: SMT-QX08

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: 1 Ply-Wooden Case With Sealing.
    Delivery Time: 50 - 68 Days
    Payment Terms: T/T, L/C
    Supply Ability: 1pcs / 50 - 68 Days
    Contact Now
    Detailed Product Description
    Name: Servo Coil Inserting Machine Applied To Micro Induction Motors Warranty: 12 Months
    Stator I.D.: 60-150mm Stator O.D.: ≤210mm
    Height Of Edge Folded: 3-10mm Automatic Grade: Semiautomatic
    Overseas After-Service: Engineers Are Available Customized: Yes

    Automatic Servo Motor Stator Coil and Wedge Inserting Machine SMT-QX08


    Based on your production needs
    1. Design the suitable product or production line for you ,OEM and ODM available.
    2. We have professional and rich experience engineers in the domestic and overseas.
    3. We will wind and test the samples in our plant before delivery

    (1) Main Technical Features


    Model SMT-QX08
    Stator I.D 60-150mm
    Stator O.D ≤210mm
    Core Length ≤190mm
    Tooling stroke ≤90mm
    Compatible wire CU/AL
    Slot number range 24-48 slots
    Power supply 380V/50/60Hz 5Kw
    Weight 1050kg
    Dimension (L)2380×(W)1180×(H)1700mm


    (2) Application


    The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

    (3) Our Service


    Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

    We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.


    (4) OEM/ODM


    Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
    Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
    Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
    Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.


    (5) Production Line Profile


    With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

    Automatic Servo Motor Stator Coil and Wedge Inserting Machine SMT - QX08

    (6) About Us


    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
