    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO/SGS Factory Inspection
    Model Number: SMT-IC-4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Wood Box As Your Asking.
    Delivery Time: 38-63 days
    Payment Terms: L/C, T/T
    Supply Ability: 1pcs 38-63 days
    Contact Now
    Detailed Product Description
    Name: Servo Motor Stator Core / DC Motor Stator Core / AC Motor Stator Core Machine Maximum Stator O.D.: 8 Inches, 200mm.
    Automatic: Full-Automatic Usage: Stator
    Stator Slot Number: 72 Stacking: Welding
    OEM: Yes Quality Guarantee Period: 12 Months

    Servo Motor Stator Core Electric Motor Winding Machine / AC Motor Stator Core Machine





    Additionally, we offer superior OEM service. After receiving customers' drawings and application needs, our technology department and purchase department will make customized design and quotation accordingly as soon as possible. Then deep discussion with customers will be conducted to make final agreement before producing customized air conditioner motor stator core Machine.





    1. We have been approved by ISO 9001 certificate and manage the factory thoroughly according to the management system.
    2. The production and marketing system not only improves the working efficiency but also assures the quality of product.
    3. Our Motor Cores are equipped with a large amount of online test instruments so that they can ensure and improve the quality of product of product to take a leading position among the above products at home and reach the international standard.



    Application:  We are professional manufacturer of OEM kinds of molds and stamping parts for over 10 years. The main products are stamping die, progressive die, punching die and motor core, laminated iron core, laminated stator and rotor etc. Professional customization and excellent talent team are our advantage.



    1. Main Technical Information Of Our Product:



    Brand Name: SMT
    Model Number: IC-4
    Certification: CE/SGS/BV/ISO9001
    Place of Origin: China



    2. Product Description

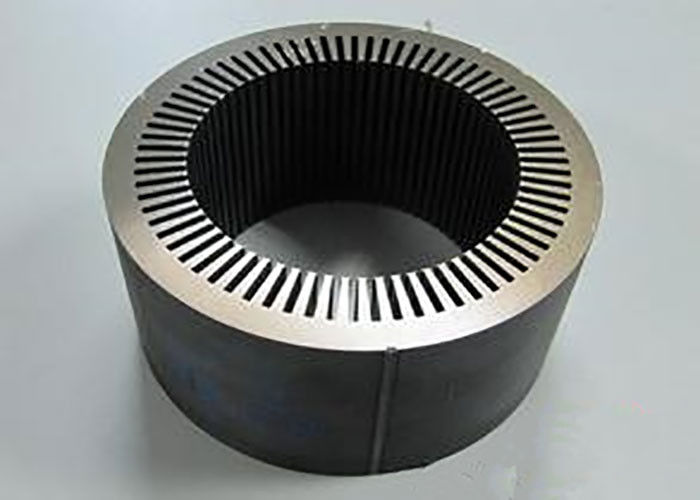

    Product Name Stator lamination Cleating Machine Application Electric motor stator production
    Status New Paint On request
    Warranty time One year after machine(s) arrive in customer’s plant Service Overseas service center available



    3. Our Service



    Minimum Order Quantity: 1 set
    Price: TBD
    Payment Terms: T/T
    Delivery Time: 45 workdays after receiving downpayment
    Packaging Details: Packed with vacuum film in plywood case



    4. Competitive Advantage:

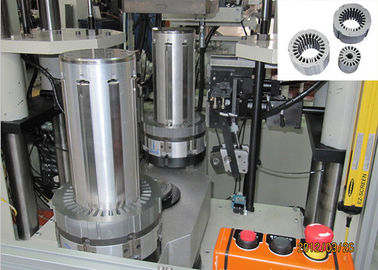

    Four cleating heads with expanding mandrel for multiple cleating of stator lamination.

    1. Basic machine complete with controls, less tooling.
    2. Heavy duty construction.
    3. Customer specified color machine enamel paint.
    4. Self-contained hydraulic power pack.
    5. Allen Bradley Programmable Controls.
    6. Slide in/out expanding mandrel.
    7. Guarded for operator protection.
    8. Maximum stack height 4 inches, 100mm.
    9. Minimum stack height ½ inch, 12mm.
    10. Maximum stator O.D. 8 inches, 200mm.
    11. Hydraulic feed rate control.
    12. Roll form cleating principle.
    13. Hydraulic compression of stack.
    14. Four (4) strip steel dereelers included.
    15. Number of cleats, 4 - Standard.
    16. Fully automatic cycle.



    5. About Our Factory:



    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
