Home ProductsStator Core Assembly Machine

Washing AC Motor Stator Core Assembly Machine , Induction Motor Winding Machine

Washing AC Motor Stator Core Assembly Machine , Induction Motor Winding Machine

    • Washing  AC Motor Stator Core Assembly Machine , Induction Motor Winding Machine
    • Washing  AC Motor Stator Core Assembly Machine , Induction Motor Winding Machine
  • Washing  AC Motor Stator Core Assembly Machine , Induction Motor Winding Machine

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO/SGS Factory Inspection
    Model Number: SMT-IC-4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Wood Box As Your Asking.
    Delivery Time: 45-69 days
    Payment Terms: L/C, T/T
    Supply Ability: 1pcs 45-69 days
    Contact Now
    Detailed Product Description

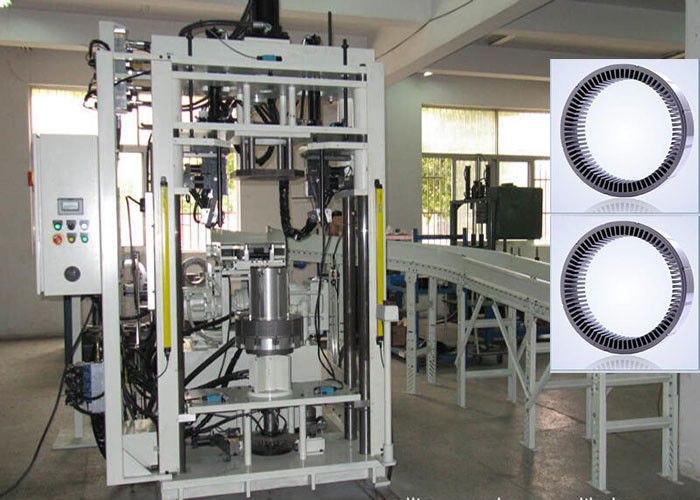

    Name: AC Motor Stator Core Machine / Stator Core Assembly Machine Maximum Stator O.D.: 8 Inches, 200mm.
    Automatic: Full-Automatic Usage: Stator
    Stator Slot Number: 72 Stacking: Welding
    OEM: Yes Quality Guarantee Period: 14 Months

    Washing AC Motor Stator Core Assembly Machine , Induction Motor Winding Machine





    Take full advantage of experienced engineers , skillful professional , perfect equipment , strict manufacturing process control and wide coverage service net-work , we are dedicated to provide our customers with the optimized solution to electric motor manufacturing , so far , except the big market share in China , we export our machines to the worldwide countries such as USA Italy , Australia , India , Brazil , Mexico ,Turkey , Tailand , Vietnam Iran etc,and our machines share the great the reputation among customers for its durable , reliable perormance , reasonable price and good after sales.



    1. Main Technical Information Of Our Product:



    Brand Name: SMT
    Model Number: IC-4
    Certification: CE/SGS/BV/ISO9001
    Place of Origin: China



    2. Product Description

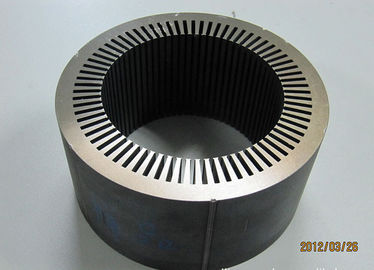

    Product Name Stator lamination Cleating Machine Application Electric motor stator production
    Status New Paint On request
    Warranty time One year after machine(s) arrive in customer’s plant Service Overseas service center available



    3. Our Service



    Minimum Order Quantity: 1 set
    Price: TBD
    Payment Terms: T/T
    Delivery Time: 45 workdays after receiving downpayment
    Packaging Details: Packed with vacuum film in plywood case



    4. Competitive Advantage:


    Four cleating heads with expanding mandrel for multiple cleating of stator lamination.

    1. Basic machine complete with controls, less tooling.
    2. Heavy duty construction.
    3. Customer specified color machine enamel paint.
    4. Self-contained hydraulic power pack.
    5. Allen Bradley Programmable Controls.
    6. Slide in/out expanding mandrel.
    7. Guarded for operator protection.
    8. Maximum stack height 4 inches, 100mm.
    9. Minimum stack height ½ inch, 12mm.
    10. Maximum stator O.D. 8 inches, 200mm.
    11. Hydraulic feed rate control.
    12. Roll form cleating principle.
    13. Hydraulic compression of stack.
    14. Four (4) strip steel dereelers included.
    15. Number of cleats, 4 - Standard.
    16. Fully automatic cycle.



    5. About Our Factory:



    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
