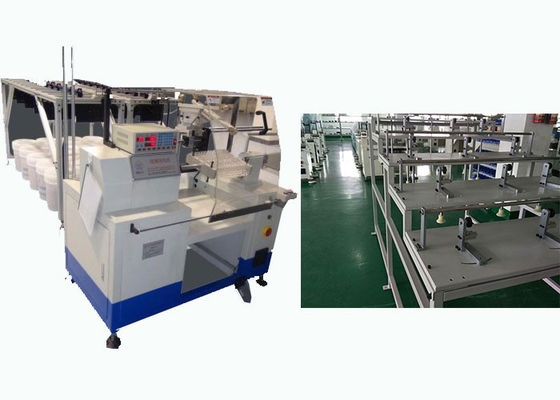

Automatic coil winding Machine for Variety Of Copper Wire Gauge Stators SMT - R350

Automatic coil winding Machine for Variety Of Copper Wire Gauge Stators SMT - R350

    • Automatic coil winding Machine for Variety Of Copper Wire Gauge Stators SMT - R350
    • Automatic coil winding Machine for Variety Of Copper Wire Gauge Stators SMT - R350
  • Automatic coil winding Machine for Variety Of Copper Wire Gauge Stators SMT - R350

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO9001/SGS
    Model Number: SMT-SR350

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Plywood Box
    Delivery Time: 30 - 45 days
    Payment Terms: T/T, L/C
    Supply Ability: 1pcs / 30 - 45 days
    Contact Now
    Detailed Product Description
    Name: High Precision Automatic Stator Winding Machine For Pmup Stator Color: White
    Non-Load Speed: ≤1500r/min Flier: 200mm
    Transfer Number: 2-6pcs Dimension: (L)2000X(W)1450X1500mm
    Winding Head: 4 Air Pressure: ≥0.6MPa
    Transfer Distance: ≥170mm
    High Light:

    Automatic Armature Winding Machine


    Automatic Ceiling Fan Winding Machine

    Automatic coil winding Machine for Variety Of Copper Wire Gauge Stators SMT - R350​



    Electric engines of generators, electric engines of washing machine, air conditioning, water pump, compressors, electric engines of fan, also applicable to copper wires, aluminum wires and some special wires, Fan motors, washing machine motor, and all kinds of small motor, square, circular, multi-layer coil winding .
    PLC programming, Chinese Menu Display;
    Frequency conversion stepless speed regulation, automatic dislocation;
    With single step and continuous work methods, simple operation;
    High efficiency and easy operation;
    OEM available, same quality much lower price.


    (1) Main Technical Parameter


    Model R350
    Wire Diameter 0.3-1.2mm
    Winding Diameter 100-350mm
    Transfer distance ≤250mm
    No-load speed 1500r/min
    Power Supply 220V/50/60Hz 1.5Kw
    Weight 900kgs
    Dimension 2000*1450*1500mm
    MOQ 1 Set Winding Machine
    Delivery time 30 days after the order is confirmed



    (2) The operation steps of this machine

    Production efficiency of this machine
    Around 1000pcs/8 hours,it is only a rough idea, depends on the armature slots number and turn number.
    Load armature on the shuttle manually, press START button,shuttle will deliver the armature to the winding position, and automatic winding, indexing and wire cutting,after completing, the shuttle will take out the finished armature from winding position, operator unload the finished armature, one cycle is completed.

    (3) Machine main function and characteristic

    Winding tooling: each machine has one set winding tooling and three vertical winding forms.
    The whole set of tooling can be changed, and it takes about 15min.
    The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
    Allow three wires winding simultaneously.
    Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
    The working rotation speed can be set . Machine has no distinct vibration and noise.
    Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
    PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
    X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
    Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.



    (4) OEM/ODM Profile

    Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.


    (5) Production Line Profile


    With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.


    (6) About Us


    SMT Alliance Automation (Suzhou) Co., Ltd. is the Sino-US joint venture between Suzhou Smart Motor Equipment Manufacturing Co., Ltd. , established in 2010, and Alliance Automation (Suzhou) Ltd., the subsidiary in China of Alliance Winding Equipment, Inc. established in 1947. Based on AWE’s decades of R&D and technology experience, SMT Alliance integrate technology design, manufacturing, managing and marketing to achieve complementary advantages and joint development.
    The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

    Automatic coil winding Machine for Variety Of Copper Wire Gauge Stators SMT - R350

    Combining years of experience and the design idea to try all best to satisfy customer’s production requirements, we can provide various options, like semi-auto production line, auto production line and unmanned production system, etc. Our high-quality and high-efficiency team always provide the optimal project, technical support and production process, manufacture the high-quality equipment and do the after-service in time for customers. We sincerely hope to establish and maintain the long term contact and cooperation with new and old customers to share the latest technical achievements in motor manufacturing machinery industry.
