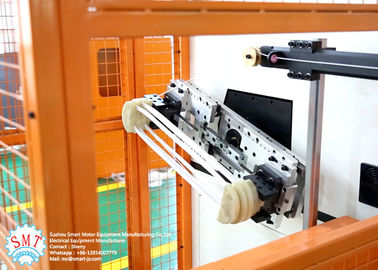

Semi - Automatic Deep Well Pump Stator Electric Motor Winding Machine 5.5KW / Winding Equipment

Semi - Automatic Deep Well Pump Stator Electric Motor Winding Machine 5.5KW / Winding Equipment

Semi - Automatic Deep Well Pump Stator Electric Motor Winding Machine 5.5KW / Winding Equipment

Product Details:

Place of Origin: China
Brand Name: SMT
Certification: ISO9001/SGS
Model Number: SMT-DR1200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Box Packaging Fit for Your Machine.
Delivery Time: 32 - 61 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1pcs / 32 - 61 days
Contact Now
Detailed Product Description
Name: Electric Generator Coil Winder / Automatic Three Phase Stator Winding Machine Transfer Number: 2-6pcs
Power Supply: 220v/50/60Hz 3Kw Dimension: 2300x 2200 X 2000mm
Winding Head: 8pcs Air Pressure: 0.4-0.6MPa

Fan Motor Stator Electric Motor Winding Machine Semi - Automatic



1. Product Description

Deep Well Pump Motor Stator Coil Winding Machine Semi - Automatic


This pump winding machine is suitable for deep well pump motor to do coil winding. It adopts special purpose controller to realize the function of auto winding, auto arraying, slot acrossing, auto getting through wax tube and output setting, etc. This Big Coil Winding Machine is suitable for winding the coil for big power motor. Big Stator Coil Winding Machine could produce different dimension coils which is for same series size stator by adjusting the tooling, and tension is adjustable.


2. Technical parameter:



Swing diameter ≤1200mm
Effective length of the tooling ≤450mm
Parallel wire number ≤45 pcs
Wire diameter 0.3~1.6mm
Wire arraying width 400mm
Power supply 220V/50/60Hz 5.5KW
Air supply 0.4MPa
Weight 1000Kg
Dimension: 2300*2200*200mm


Information needed for Automatic Stator Coil Winding Machine inquiry
It will be better if customer could send us detailed drawing including below information.
1. Stator drawing
2. Stator winding drawing
3.Winding distribution drawing
4. Other technical requirement
If possible, it will be better if customer can send us samples.


3. Competitive advantages


Variety of application, easy operation.
We have Overseas Service Center.
It is suitable for stators with different model number and dimension.
The operation and tooling change process is easy.
We could customize machine for our customer as per their requirement.
We directly supply our machines to many countries, like USA, France, Turkey, Iran, India, Brazil, Argentina, Mexico etc.

Main Features:

1. suitable for inserting coil and wedge into stator slot by servo system;
2. can insert the coil and wedge or coil and wedge in the mid of slot into stator at a time;

3. wedge feeding is to be done by stepping motor, and coil and wedge inserting is by servo system;
4. different parameter could be set in human-machine interface;
5. the speed and feeding mode is acquirable according to different slot filling rates and different kinds of wire.



4. Application:


This machine is suitable for 2 poles, 4 poles coils winding.

5. Machine main function and characteristic


Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.



6.  OEM/ODM Profile


Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.

Semi - Automatic Deep Well Pump Stator Electric Motor Winding Machine 5.5KW / Winding Equipment

7. Production Line Profile



With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.



8. About Our Factory



Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
