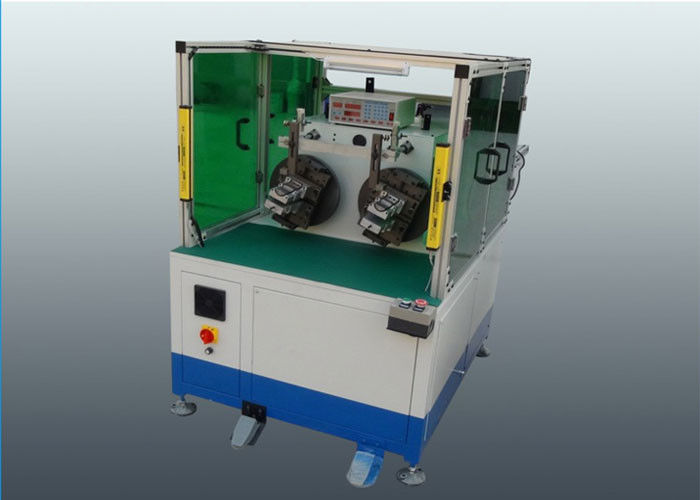

Motor Products Automatic Stator Coil Winding Machine SMT-WR100

Motor Products Automatic Stator Coil Winding Machine SMT-WR100

    • Motor Products Automatic Stator Coil Winding Machine SMT-WR100
    • Motor Products Automatic Stator Coil Winding Machine SMT-WR100
  • Motor Products Automatic Stator Coil Winding Machine SMT-WR100

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO9001 / SGS
    Model Number: SMT-WR100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Plywood box, or as tell us your requirement about the package.
    Delivery Time: 3-9 weeks
    Payment Terms: T/T, L/C
    Supply Ability: 1pcs / 3-8 weeks
    Contact Now
    Detailed Product Description
    Name: Motor Products Automatic Stator Coil Winding Machine Flier: 200mm
    Transfer Number: 2-8pcs Power Supply: 220V/50/60Hz 1.5Kw
    Dimension: (L)1050*(W)1800*(H)1500mm Winding Head: 2-6pcs
    Air Pressure: 0.6-0.7Mpa Wire Diameter: 0.15-0.9mm

    Motor Products Automatic Stator Coil Winding Machine SMT-WR100





    Vertical winding machine series wind coil directly and orderly into transfer cups , main spindle high speed mold dipping , hooking and cutting wire , turnable and transfer cup index are all controlled by servo motors , is is especially suitable for the coil inserting of stator with high slot filling and small slot opening . it saves labor and has high efficiency .

    1.This machine is applied to make winding coils before running automatic winding inserting machine
    2. It enables the cooper wires to be wounded to the segment tooling.
    3. The finished winding coils could be transferred to be winding inserting machine for the operation via the special fixture directly .
    4 .It does not require the operator to dot the winding coill shifting from present machine to the former 1st remove the winding coils to the winding inserting machine afterwards .
    5. It is much suitable for the stators winding coils making of three phases motor and two poles motor
    6.Six spindles are controlled by servo motors , with eight stations , four winding heads , wind the same coils or each two heads wind the same coils.



    (1) Main Machine's Information



    Model WR100
    Wire Diameter 0.15-0.8mm
    Rotating Speed 800r/min
    Winding head 2pcs
    Swing diameter 250mm
    Max. winding distance 160mm
    Air Pressure 0.4-0.7Mpa
    Power Supply 220V/50/60Hz 1.5Kw
    MOQ 1pcs
    Dimension (L)1050*(W)1800*(H)1500mm



    (2) The operation steps of this machine


    Production efficiency of this machine
    Around 1000pcs/8 hours,it is only a rough idea, depends on the armature slots number and turn number.
    Load armature on the shuttle manually, press START button,shuttle will deliver the armature to the winding position, and automatic winding, indexing and wire cutting,after completing, the shuttle will take out the finished armature from winding position, operator unload the finished armature, one cycle is completed.

    (3) Machine main function and characteristic


    Winding tooling: each machine has one set winding tooling and three vertical winding forms.
    The whole set of tooling can be changed, and it takes about 15min.
    The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
    Allow three wires winding simultaneously.
    Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
    The working rotation speed can be set . Machine has no distinct vibration and noise.
    Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
    PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
    X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
    Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.



    (4) OEM/ODM Profile


    Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.

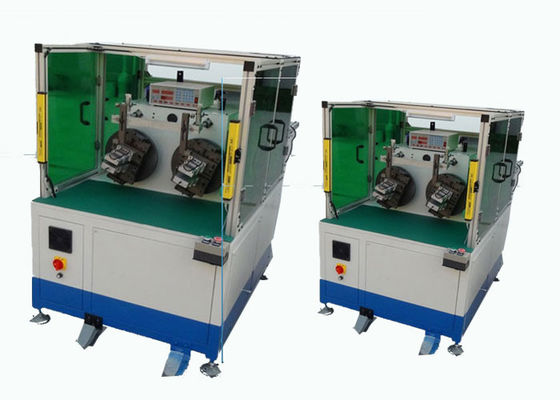

    Motor Products Automatic Stator Coil Winding Machine SMT-WR100

    (5) Production Line Profile



    With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.



    The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.
