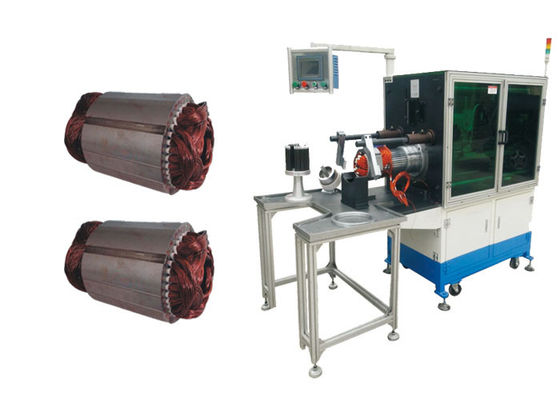

Combined Wire Saving Efficient Stator Winding Inserting Machine SMT - KW300

Combined Wire Saving Efficient Stator Winding Inserting Machine SMT - KW300

    • Combined Wire Saving Efficient Stator Winding Inserting Machine SMT - KW300
    • Combined Wire Saving Efficient Stator Winding Inserting Machine SMT - KW300
  • Combined Wire Saving Efficient Stator Winding Inserting Machine SMT - KW300

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / SGS Audit
    Model Number: SMT-KW300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Plywood Box With Sealing.
    Delivery Time: 29-62days
    Payment Terms: T/T, L/C
    Supply Ability: 1pcs / 29-62days
    Contact Now
    Detailed Product Description
    Name: Combined Wire Saving Efficient Coils Winding Insertion Machine Appropriate Wire: 0.2~1.2mm
    Our Services: 12 Months Warranty Period Tooling Travel: Max 70mm
    Color: Orange/White Stator I.D.: 110-210mm
    Stator O.D.: 175-300mm Tooling Travel: ≤70mm



    Combined Wire Saving Efficient Coils Winding Insertion Machine SMT-KW300





    1) Capable of automatically pulling the static coil and paper into the static slots for one time.

    2) Capable of modifying the parameters on the touch screen, with the automatic paper feed mechanism capable of fixed-length paper feeding, molding, cutting and inserting into the paper base of the coil inserting mold.

    3) All welding with the steel plate, the machinery body has wonderful stability; the oblique horizontal structure fits for the ergonomics; with the optional speeds, adjustable patterns and interval paper feeding

    4) The modes are made of excellent materials, with multiple processing and modeling; the modes can be replaced for the production of various electric engine statics.



    (1) Main Technical Features



    Model KW300
    Stator I.D. 110-210mm
    Stator O.D. 175-300mm
    Stack Height ≤250mm
    Tooling Travel ≤70mm
    Appropriate Wire Diameter 0.2-1.2mm
    Slot number range 8-48slot
    Power Supply 380V/50/60Hz 4Kw
    MOQ 1 set Motor Wire Inserting Machine
    Machine dimension (L)1000*(W)2000*(H)2000mm



    (2) Application



    The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.


    (3) Our Service



    Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

    We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.



    (4) OEM/ODM



    Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
    Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
    Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
    Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



    (5) Production Line Profile



    With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

    Combined Wire Saving Efficient Stator Winding Inserting Machine SMT - KW300

    (6) About Us



    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
