AC Electric Motor Winding Machine Single Phase Washing Wire

AC Electric Motor Winding Machine Single Phase Washing Wire

  • High Light

    Auto Coil Winding Machine

    ,

    Automatic Ceiling Fan Winding Machine

  • Name
    Single Phase Washing Wire Winding Machine / Low Power AC Motors Machine
  • Flier
    200mm
  • Transfer Number
    2-6pcs
  • Power Supply
    220v/50/60Hz 3Kw
  • Dimension
    2300x 2200 X 2000mm
  • Winding Head
    8pcs
  • Air Pressure
    0.4-0.6MPa
  • Power
    Electric
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO9001/SGS
  • Model Number
    SMT-DR1200
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wooden Box Packaging Fit for Your Machine.
  • Delivery Time
    33 - 52 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 33 - 52 days

AC Electric Motor Winding Machine Single Phase Washing Wire

AC Electric Motor Winding Machine Single Phase Washing Wire





Our coil winding system consists of the parts like foot pedal control valves, pressure gauges and pressure plates. An engineer can control the winding speed, tougue, tension during the winding process. The gauge provides accurate tension readings during the winding process. The pressure plates within the tension system protect the wire insulation from getting damaged. All these features are used to make best quality coils.



(1) Main Technical Date



Item Data
Model DR1200
Swing Diameter ≤900mm
Wire diameter 0.4 - 1.5mm
Paralle Wire No. ≤ 40pieces
Air Pressure 0.4 -0- 0.6 MPa
Power supply 220V/ 50/60Hz, 3kw
Machine weight About 1100kg
Machine dimension (LxWxH) 2300x 2200 x 2000mm



(2) Application:
This machine is suitable for 2 poles, 4 poles coils winding.

(3) Machine main function and characteristic


Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.



(4) OEM/ODM Profile


Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.



(5) Production Line Profile



With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

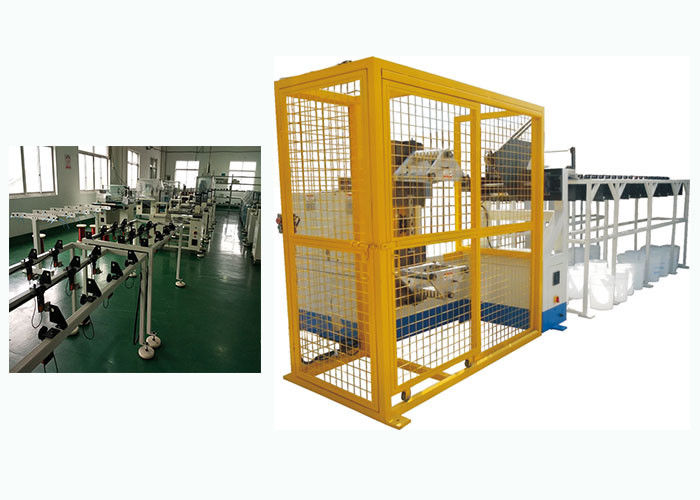

AC Electric Motor Winding Machine Single Phase Washing Wire 0

(6) About Our Factory



Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
