H120mm Stator Paper Inserting Machine For AC Motor Stator Insulation Insertion

H120mm Stator Paper Inserting Machine For AC Motor Stator Insulation Insertion

    • H120mm Stator Paper Inserting Machine For AC Motor Stator Insulation Insertion
    • H120mm Stator Paper Inserting Machine For AC Motor Stator Insulation Insertion
  • H120mm Stator Paper Inserting Machine For AC Motor Stator Insulation Insertion

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / BV / SGS
    Model Number: SC120

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Price unit: USD; Price depends on configuration, design and customer special request, which can be negotiated later.
    Packaging Details: Plastic wrapping film, vacuum package and plywood cases. The package size depends on actual machine size.
    Delivery Time: 45-50 days after placing order
    Supply Ability: 15 Set/Sets per Month
    Contact Now
    Detailed Product Description

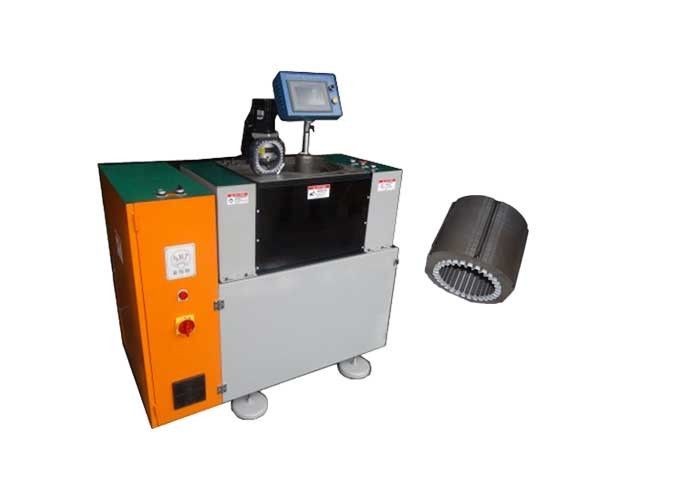

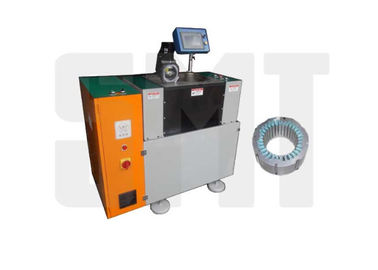

    Name: H120mm Stator Slot Insulation Machine For AC Motor Stator Insulation Insertion Model: SMT-SC120
    Stack Height: ≤120mm Stator ID Min: 60mm
    Stator ID Max: 100mm Air Pressure: ≥0.5MPa

    H120mm Stator Slot Insulation Machine for AC Motor Stator Insulation Insertion SMT-SC120





    Compared with common slot insulation machines, SC series have an advantage because it's able to insert insulation paper into different slot shapes at one time. If one stator with several slot shapes, this kind of slot insulation machine is more suitable.



    (1) Technical Parameters



    Model

    SMT-SC120

    Stack height

    ≤120mm

    Stator I.D

    Φ60~Φ100mm

    Stator O.D

    ≤Φ160mm

    Cuff height

    2.5~6mm

    Insulation paper’s thickness

    ≤0.3mm

    TAKT time

    ≈0.6s/s

    Power supply

    380V/50/60Hz 1.1Kw

    Air Pressure

    ≥0.5MPa

    Weight

    ≈500Kg

    Dimension(L×W×H mm)

    1150×1050×1450mm



    (2) Brief Instruction of Machine



    Machine "H120mm Stator Slot Insulation Machine for AC Motor Stator Insulation Insertion" is used for inserting insulaton paper to stator slots automatically at one time, especially for stators with different slot shapes.

    The tooling design is according to stator slots shape and dimension. Different kinds of tooling is available for stator prodction.



    (3) Main Specifications



    1. A special design for stators with different slot shapes and sizes, like washing machine motor, fan motor, compressor motor, etc.;

    2. It can finish insulation paper insertion with one roll insulation paper at one time;

    3. Automatic adjustment of paper length and width, paper cutting, cuff forming and inserting when inserting paper to different-size and different-shape slot;

    4. Paper feeding and cutting are finished by servo motors;

    5. Interpersonal interface sets required specific parameters;

    6. Forming mold is adjustable to different slot sizes automatically;

    7. Characterized by simple operation, low noise, fast speed and high automation.

    8. Indexing can be configured with servo motors or stepper motors.





    (5) Application



    Our machines are mainly applied in various induction motors such as washing machine motor, air conditioner motor, general purpose pump motor, reducer motor, industrial three-phase motor, fan motor and new energy motor, etc.

    H120mm Stator Paper Inserting Machine For AC Motor Stator Insulation Insertion



    (6) Company Profile - Suzhou Smart motor Equipment Manufacturing Co.,Ltd



    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is a Chinese manufacturer, which is specialize in R&D, manufacturing and selling automatic equipments for motor production as well as exporting equipments to the world. The company now has nearly 81 employees including more than 10 engineers and technicians, with the building area about 5,000 square meters and hundered sets of advanced production and equipments under testing.
