H60mm Stator Insulator Paper Inserter Machine for Inserting Different Slot Shapes

H60mm Stator Insulator Paper Inserter Machine for Inserting Different Slot Shapes

    • H60mm Stator Insulator Paper Inserter Machine for Inserting Different Slot Shapes
    • H60mm Stator Insulator Paper Inserter Machine for Inserting Different Slot Shapes
  • H60mm Stator Insulator Paper Inserter Machine for Inserting Different Slot Shapes

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / BV / SGS
    Model Number: SC80

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Price unit: USD; Price depends on configuration, design and customer special request, which can be negotiated later.
    Packaging Details: Plastic wrapping film, vacuum package and plywood cases. The package size depends on actual machine size.
    Delivery Time: 45-50 days after placing order
    Supply Ability: 15 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Name: H60mm Stator Insulator Inserting Machine For Inserting Different Slot Shapes Model: SMT-SC80
    Stack Height: Max: 60mm Stator ID: Max: 80mm
    Stator OD Max: 160 Mm TACT Time: ≈0.45s Per Slot

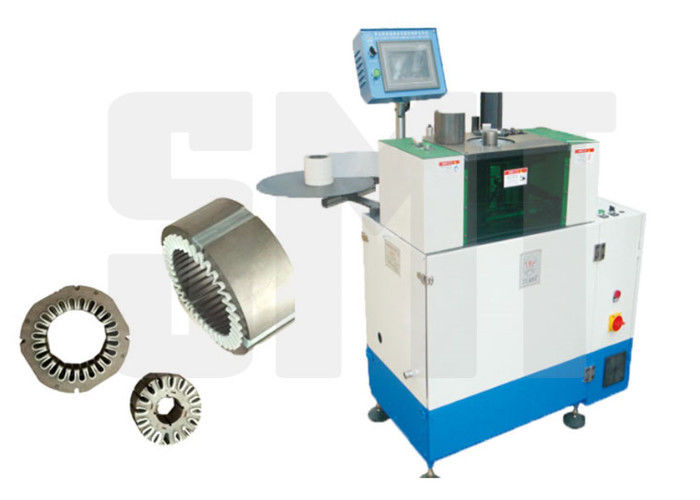

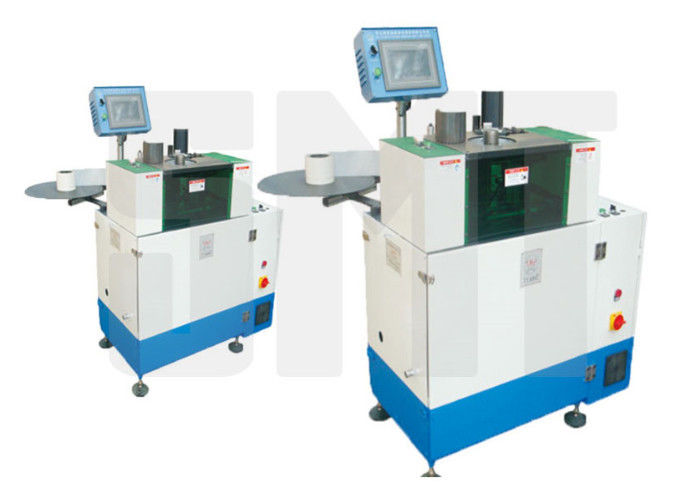

    H60mm Stator Insulator Inserting Machine for Inserting Different Slot Shapes SMT-SC80





    Compared with common slot insulation machines, SC series have an advantage because it's able to insert insulation paper into different slot shapes at one time. If one stator with several slot shapes, this kind of slot insulation machine is more suitable.



    (1) Technical Parameters



    Model

    SMT-SC80

    Stack height

    ≤60mm

    Stator I.D

    Φ40~Φ80mm

    Stator O.D

    ≤Φ160mm

    Cuff height

    2.5~4mm

    Insulation paper’s thickness

    ≤0.25mm

    TAKT time

    ≈0.45s/s

    Power supply

    380V/50/60Hz 0.75Kw

    Air Pressure

    ≥0.5MPa

    Weight

    ≈450Kg

    Dimension(L×W×H mm)

    1150×1050×1450mm



    (2) Brief Instruction of Machine



    Machine "H60mm Stator Insulator Inserting Machine for Inserting Different Slot Shapes" is used for inserting insulaton paper to stator slots automatically at one time, especially for stators with different slot shapes.

    The tooling design is according to stator slots shape and dimension. Different kinds of tooling is available for stator prodction.



    (3) Main Specifications



    1. A special design for stators with different slot shapes and sizes, like washing machine motor, fan motor, compressor motor, etc.;

    2. It can finish insulation paper insertion with one roll insulation paper at one time;

    3. Automatic adjustment of paper length and width, paper cutting, cuff forming and inserting when inserting paper to different-size and different-shape slot;

    4. Paper feeding and cutting are finished by servo motors;

    5. Interpersonal interface sets required specific parameters;

    6. Forming mold is adjustable to different slot sizes automatically;

    7. Characterized by simple operation, low noise, fast speed and high automation.

    8. Indexing can be configured with servo motors or stepper motors.



    (4) Services



    We're dedicated to R&D and manufacturing machines for different induction motors production, such as Coil Winding machine, Coil Inserting Machine, etc.

    Design and manufacturing are standard except customer has special request. For example, shape design, allocation and colour,etc. can be specilized. Besides, we can help to arrange the layout of machines in customer site when necessary.

    Our engineers will provide customers with professional technical support. Within one year warranty period, some support and parts need to be replaced will be without charge.

    Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.

    With good service, professional team and reliable quality, SMT provide customer with different kinds of equipments for various motors production. It can be one set machine or the whole prodcution line from winding process to final forming process. So especially for customer who wants the whole production line, we can provide manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.



    (5) Application



    Our machines are mainly applied in various induction motors such as washing machine motor, air conditioner motor, general purpose pump motor, reducer motor, industrial three-phase motor, fan motor and new energy motor, etc.
