Electric Motor Stator Coil Winding Machine Final Forming Machine Copper / Aluminum Wire SMT - ZJ160

Electric Motor Stator Coil Winding Machine Final Forming Machine Copper / Aluminum Wire SMT - ZJ160

Electric Motor Stator Coil Winding Machine Final Forming Machine Copper / Aluminum Wire  SMT - ZJ160

Product Details:

Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT - ZJ160

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 2 -3.2 months
Payment Terms: T/T
Supply Ability: 1pcs / 2 -2.9 months
Contact Now
Detailed Product Description
Name: Motor Stator Coil Winding Final Forming Machine Copper / Aluminum Wire Model: ZJ160
Stator I.D.: 31 -101mm Stator O.D.: ≤161mm
Weight: 1100kgs Machine Dimension: (L)1200*(W)750*(H)2500

Electric Motor Stator Coil Winding Final Forming Machine / Copper Wire / Aluminum Wire / Motor SMT - ZJ160





This high speed copper wire motor coil winding machines can wind and tie wires as you need. Such as adjusting the length of the wire's head and tail.The copper wire motor coil winding machines can also support wires with magnet ring ,commodities suffix wire,and other special wires.
We can even reform the copper wire motor coil winding machines for your special needs if you have large production of wires and cables.



(1) Main Technical Features



Model ZJ160
Stator I.D. 31 -101mm
Stator O.D. ≤160mm
Stack Height 16-100mm
Displacement of cylinder ≤20F
MOQ 1 Set Mid - Forming Machine
Power Supply 380V/50/60Hz 3.75Kw
Weight 1100kgs
Machine dimension (L)1200*(W)750*(H)2500

(2) Application



The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.


(3) Machine Main Characteristic



This machine adopts whole hydraulic system and PCL program.

This machine can adjust the forming stack length by changing washer.

Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

Production capacity ≤13s/set (exclude loading/unloading time)

Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

This machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.

Efficiency stator coil forming machine,stator coil forming machine,coil forming machine work,coil forming machine used



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.

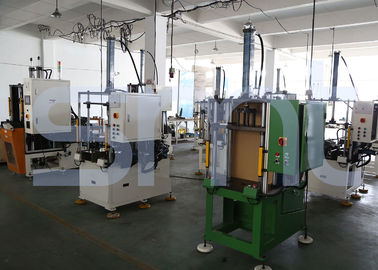

(5) Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

Electric Motor Stator Coil Winding Machine Final Forming Machine Copper / Aluminum Wire  SMT - ZJ160



(6) About Us



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
