Vertical Motor Stator Lacing Machine Binding Winding Heads In Good Shape

Vertical Motor Stator Lacing Machine Binding Winding Heads In Good Shape

Product Details:

Place of Origin: China
Brand Name: SMT
Certification: SGS / ISO / BV
Model Number: SMT - SBZ160

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: USD; Total price will be negotiated according to stator details
Packaging Details: Plastic wrapping film, vacuum package and plywood cases.
Delivery Time: 55-60 days after receiving advance payment
Payment Terms: T/T , L/C
Supply Ability: 14 sets per Month
Contact Now
Detailed Product Description
Name: Vertical Motor Stator Coil Lacing Machine Binding Winding Heads In Good Shape Model: SBZ160
Control System: CNC Lacing Mode: Various
Air Pressure Max: 1 Mpa Power Supply: 380V/50HZ 4KW
Coil Head H: ≤40mm Warranty: 1 Year

Vertical Motor Stator Coil Lacing Machine Binding Winding Heads in Good Shape  SMT - SBZ160

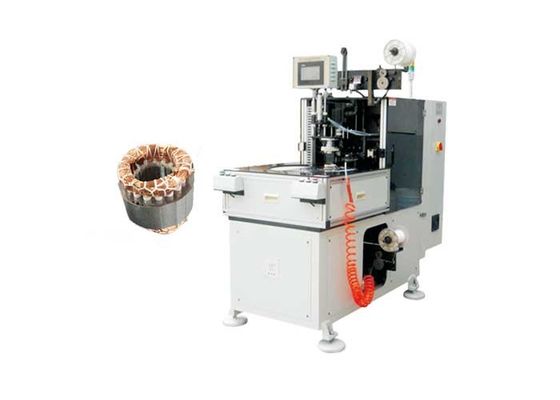

Motor Stator Lacing Machine, 2 working stations with turntable, 2 lacing needles lacing simultaneously, can keep stator coils in good shape and be well tightened.
And different lacing patterns can be set accordingly. With fast speed, low noise, simple operation and easy tooling change. It can be combined with robots together for full-automatic production line.


(1) Main Technical Information


Model

SBZ160

Stack Height

15-120mm

Stator I.D.

25-100mm

Stator O.D.

≤Φ160mm

Height of coil

≤40mm

Lacing Mode

Slot by slot/interval slot/Fancy lacing

Lacing Speed

about 0.45s/s

Power Supply

380V/50/60Hz 3.5Kw

Weight

1500kgs

Machine dimension

(L)1950*(W)1050*(H)2050mm


(2) Brief Instruction of Machine

Machine "Vertical Motor Stator Coil Lacing Machine Binding Winding Heads in Good Shape" is applied in lacing induction motor both winding heads automatically. It can save labors largely compared with manual. And It can set different lacing patterns, which is more flexible for using and secure.

(3) Main Specifications

1. Auto structure of pushing out stators can be equipped accordingly;
2. Adopting two needles to lace the stator winding ends automatically;
3. Adopting CNC control system to control the servo motors of four spindles;
4. Needle transposition and stator indexing are driven by servo motor;
5. The separated type tooling design and changeover time: ≤15mins;;
6. can detect fault location, with the function of fault diagnosis;
7. Main spindle is driven by servo motor; the speed is adjustable;
8. Lacing mode: lacing slot by slot, interval slot, skip slot or fancy lacing;
9. Equipped with automatic feeding, cutting and mechanical cord tension system;
10. During production, the cord spool is placed on the floor in vertical position;
11. Quick stack height changeover is available by hands;
12. Equipped with safety grating, reset automatically upon signal;
13. Operator works in standing posture;
14. Pressing the button to start the machine by both hands;


(4) Services


We're devoted in R&D and manufacturing equipment for induction motor production, such as Winding machine, Coil Inserting Machine, Lacing Machine and so on.
OUr machines are designed according to customer requirements. For example, machine facade, allocation and mechanism structure,etc. can be specilized if customer has special request. Besides, we can help to arrange the layout of machines of customer site when necessary.
Our engineers will provide customer with technical support. Within one year guarantee period, some technical support and some parts can be supplied for free. Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.
We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.


(5) Production Line Service


SMT team can provide customer with various kinds of equipments for electric motors production. It can be one set machine or the whole prodcution line from winding process to final forming process.
So if customer wants the whole production line, we can provide manufacturing technical consulting service and turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.

Vertical Motor Stator Lacing Machine Binding Winding Heads In Good Shape

(6) Company Profile - Suzhou Smart motor Equipment Manufacturing Co., Ltd.


Suzhou Smart motor Equipment Manufacturing Co.,Ltd is a manufacturer in Suzhou city, China, which is specialized in R&D, manufacturing and selling automatic equipments for motor production as well as exporting equipments to the world. The company now has nearly 81 employees including more than 10 engineers and technicians, with the building area about 5,000 square meters and hundered sets of advanced production and equipments under testing.
