Pneumatic System Paper Inserter Special For Variable Frequency Motor Stator

Pneumatic System Paper Inserter Special For Variable Frequency Motor Stator

  • High Light

    paper inserter

    ,

    slot insulation machine

    ,

    Pneumatic System Paper Inserter

  • Name
    Slot Insulation Insertiong Machine Special For Variable Frequency Motor Staor
  • Model
    SMT-CB160
  • Stack Height
    ≤50mm
  • Stator ID Min
    50mm
  • Stator OD Max
    160mm
  • Air Pressure
    ≥0.6MPa
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / BV / SGS
  • Model Number
    CB160
  • Minimum Order Quantity
    1 Set
  • Price
    Price unit: USD; Price depends on configuration, design and customer special request, which can be negotiated later.
  • Packaging Details
    Plastic wrapping film, vacuum package and plywood cases. The package size depends on actual machine size.
  • Delivery Time
    50-55 days after receiving advance payment
  • Supply Ability
    10 Set/Sets per Month

Pneumatic System Paper Inserter Special For Variable Frequency Motor Stator

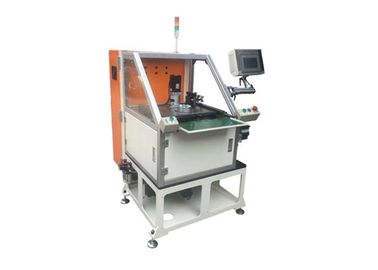

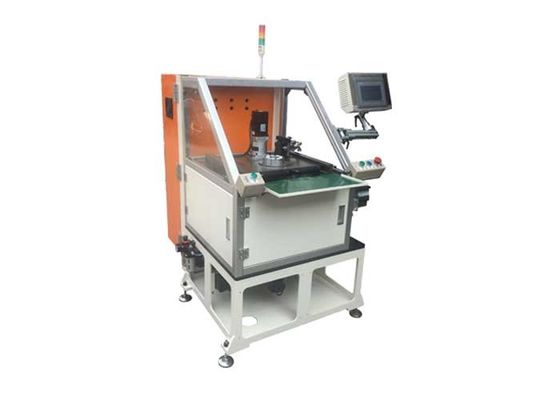

Slot Insulation Insertiong Machine Special for Variable Frequency Motor Staor  SMT-CB160





A new type automatic Slot Insulation Machine, especially suitable for series motor stator insulator insertion.



(1) Technical Parameters



Model SMT-CB160
Stack height ≤50mm
Stator ID ≥φ50mm
Stator OD ≤φ160mm
Cuff height 2~5mm
Slot size 2×6×8
Lamination thickness ≤0.35mm
Cycle time ≤5s/slot
Power supply 380V/50(60)HZ 3.5KW
Air pressure 0.6~1MPa
Weight 800Kg
Dimension (L)1340×(W)1900×(H)1400mm



(2) Brief Instruction of Machine



Machine "Slot Insulation Insertiong Machine Special for Variable Frequency Motor Staor" is used for inserting insulation paper into stator slots automatically at one time, especially for series motor stators.

The tooling design is according to stator slots shape and dimension. Different kinds of tooling is available for stator prodction.



(3) Main Specifications



1. Mechanical drive combined with pneumatic system, AC servo control and PLC control;

2. Inserting insulation paper into slots automatically;

3. With HMI system, easy for operation, showing working status, analyzing faults and data is settable in HMI;

4. It has high automation, reliability and efficiency, with linkage interlock protection;

5. Especially suitable for series motor stator insulator insertion.


(4) Services

We foucus on developing and producing machines / equipment for induction motors production, such as Winding machine and Coil Inserting Machine and so on.
Design and manufacturing of these products are as customer's request. For example, shape design, allocation and color,etc. can be specilized if customer has special request. Moreover, we can help to arrange the layout of machines in customer site when necessary.
Our engineers will provide customer with technical support. Within one year warranty period, some technical support and some parts need to replace will be for free. Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.
We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.



(5) Production Line Service

With good service, professional team and reliable quality, SMT provide customer with different kinds of equipments for various motors production. It can be one set machine or the whole prodcuting line from winding process to final forming process. So if customer wants the whole production line, we can provide manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.
