Automatic Inserter Machine Max 50 Mm Stack Height For Variable Frequency Motor

Automatic Inserter Machine Max 50 Mm Stack Height For Variable Frequency Motor

Product Details:

Place of Origin: China
Brand Name: SMT
Certification: ISO, BV, SGS
Model Number: CB160

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Price unit: USD; Price can be negotiated according to design and customer special request.
Packaging Details: Plastic wrapping film, vacuum package and plywood cases. The package size will be confirmed before delivery.
Delivery Time: 50-55 days after receiving advance payment
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Name: Automatic Machine For Slot Insulation Of Variable-frequency Motor Producing Model: SMT-CB160
Stack Height: Max 50mm Cuff Height: Max 5mm
Power Supply: 380V/50(60)HZ 3.5KW Warranty: 1 Year

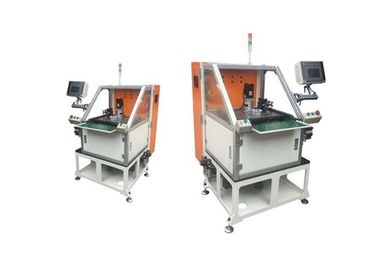

Automatic Machine for Slot Insulation of Variable-frequency Motor Producing  SMT-CB160





An automatic machine for stator slot insulation inserting, especially suitable for series motor stator insulator insertion.



(1) Technical Parameters



Model SMT-CB160
Stack height ≤50mm
Stator ID ≥φ50mm
Stator OD ≤φ160mm
Cuff height 2~5mm
Slot size 2×6×8
Lamination thickness ≤0.35mm
Cycle time ≤5s/slot
Power supply 380V/50(60)HZ 3.5KW
Air pressure 0.6~1MPa
Weight 800Kg
Dimension (L)1340×(W)1900×(H)1400mm



(2) Brief Instruction of Machine



Machine "Automatic Machine for Slot Insulation of Variable-frequency Motor Producing" is used for inserting insulation paper into stator slots automatically at one time, like series motor stators.

The design is according to stator slots shape and dimension. Different kinds of tooling is available for stator prodction.



(3) Main Specifications



1. Mechanical drive combined with pneumatic system, AC servo control and PLC control;

2. Inserting insulation paper into slots automatically;

3. With HMI system, easy for operation, showing working status, analyzing faults and data is settable in HMI;

4. It has high automation, reliability and efficiency, with linkage interlock protection;

5. Especially suitable for series motor stator insulator insertion.


(4) Services

We foucus on R&D and producing induction motor production machines, such as Winding machine and Coil Inserting Machine, Slot Insulation Machine and so on.
SMT machines are as customer's requirements. For example, machine allocation, color and some special structure etc. can be specilized if customer has special request. Generally, we'll provide the layout plan of machines in customer site too.
Within one year warranty period, some technical support and some parts need to be replaced will be for free. Overseas after-service and training in customer's site are both available. If customer needs our help, our after-sales engineers will be there within the shortest time.
We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.



(5) Production Line Service

With excellent service, professional team and high quality, SMT provide customer with different kinds of equipments for various motors production. It can be one set machine or the whole prodcuting line from winding process to final forming process. So if customer wants the whole production line, we can provide manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.
