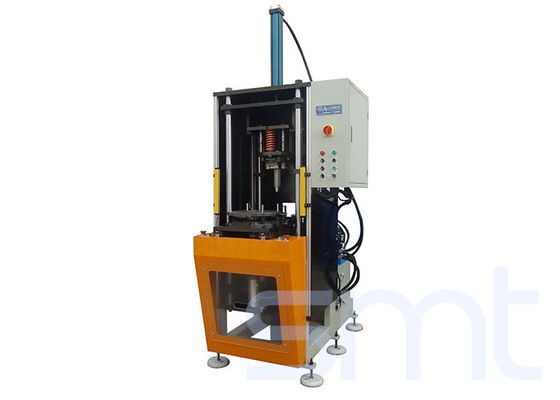

Automatic Enter / Exit Station Motor Stator Winding Machine Huralic Oil Drive

Automatic Enter / Exit Station Motor Stator Winding Machine Huralic Oil Drive

Automatic Enter / Exit Station Motor Stator Winding Machine Huralic Oil Drive

Product Details:

Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT - ZZ190

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 8-11 weeks
Payment Terms: T/T , L/C
Supply Ability: 1pcs / 7-9 weeks
Contact Now
Detailed Product Description
Name: Automatic Enter And Exit Station Stator Winding Final Forming Machine Model: ZJ190
Stator I.D.: 50-131mm Stator O.D.: ≤191mm
After-sales Service Provided: Engineers Available To Service Machine Machine Dimension: (L)1943*(W)112*(H)2510mm
After-Sales Service: Overseas Service Available Drive Method: Huralic Oil

Stator Coil Forming Machine For Making Motors / Coil Forming Machine SMT - ZZ190



This stator forming machine adopts whole hydraulic system and PCL program.This machine can adjust the forming stack length by changing washer. This machine adopts safety grating protection system.



(1) Main Technical Date



Model ZZ190
Stator I.D. 50-131mm
Stator O.D. ≤191mm
Stack Height 20-160mm
Displacement of cylinder 20F
MOQ 1 Coil Forming Machine
Power Supply 380V/50/60Hz 3Kw
Weight 1501kgs
Machine dimension (L)1953*(W)1102*(H)2510mm



(2) Application

The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.


(3) Machine Main Characteristic



This machine adopts whole hydraulic system and PCL program.

This machine can adjust the forming stack length by changing washer.

Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

Production capacity ≤13s/set (exclude loading/unloading time)

Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

This machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.

Efficiency stator coil forming machine,stator coil forming machine,coil forming machine work,coil forming machine used

Automatic Enter / Exit Station Motor Stator Winding Machine Huralic Oil Drive

(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5) Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
